Efficient Wire Wrapping Testing Machine With 380V Power And Customization

Product Description NDS-1

Color: Default Color
Size: Default Size
Origin: China
Usage: Default Usage
Type: Default Type
Efficiency: 99.9% Type

Category: Wire Wrapping Testing Machine

Get Inquiry

Description:

Model NO.	50mm
Type	0.5
Load Way	Static Load
Display	Computer Control
Weight	AC380V
Oil Cylinder Position	Tensile Test Compression Test, Bending Test etc.
Packaging Details	300kN 500kN 600kN 1000kN 1500kN 2000kN
Standard	Wire
Certificate	Wooden Box
Specification	VTS
Origin	9024109000
Production Capacity	150j 300j 450j 600j 750j
Max Load	Wire Wrapping Testing Machine
Testing Machine Mode	OEM
Protection Class	0.5grade
Application	<900kg
Test Standard	380V
Material	Computer, Digital, Dial
Impact Energy	Plastic Pipe Hydrostatic Pressure and Burst Tester
Testing Standard	10MPa, 16MPa, 25MPa, 3 Stations
Testing Pipe	+50PA~ +1500PA
Usage

Product Description

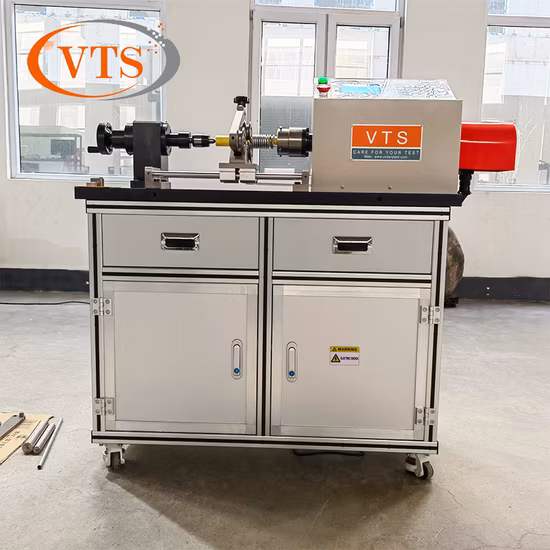

NDS-10H Wire Wrapping Testing Machine

1. Application & Features:

These Series steel wire wrap testing machines are ingeniously crafted and engineered as per ISO7802 Metallic Material- Wire-Wrapping Test standards.
They are utilized in the sophisticated method of evaluating a wires ability to maintain its integrity when bent, particularly for those with a diameter or thickness ranging from 1.0 to 10mm inclusive, ensuring the wire can withstand plastic deformation through wrapping.
The meticulous testing process involves winding the wire around a mandrel with a diameter specified by the relevant standard, forming a tightly-wound helix. This process may also entail a series of specified windings, unwindings, or even rewindings to assess the wires resilience and performance.
This testing machine offers a dependable and precise method for both wire manufacturers and users to assess the quality and durability of their products.

2. Main Technical Specifications:

No.	Items	Spec.
1	Wire diameter	?1.0-?10mm
2	Wrapping test	20r/min
3	Mandrels	Made as required
4	Counting resolution	360°/r
5	Working voltage	1-phase, 220V AC, 50Hz/60Hz

Name	Item	Qty.
Loading frame	Horizontal, high stiffness, high stability	1 set
Drive system	Precise motor and drive	1 set
Measurement and control system	mini-computer, multi-function, easy for operation	1set
Wrapping test grips		1set

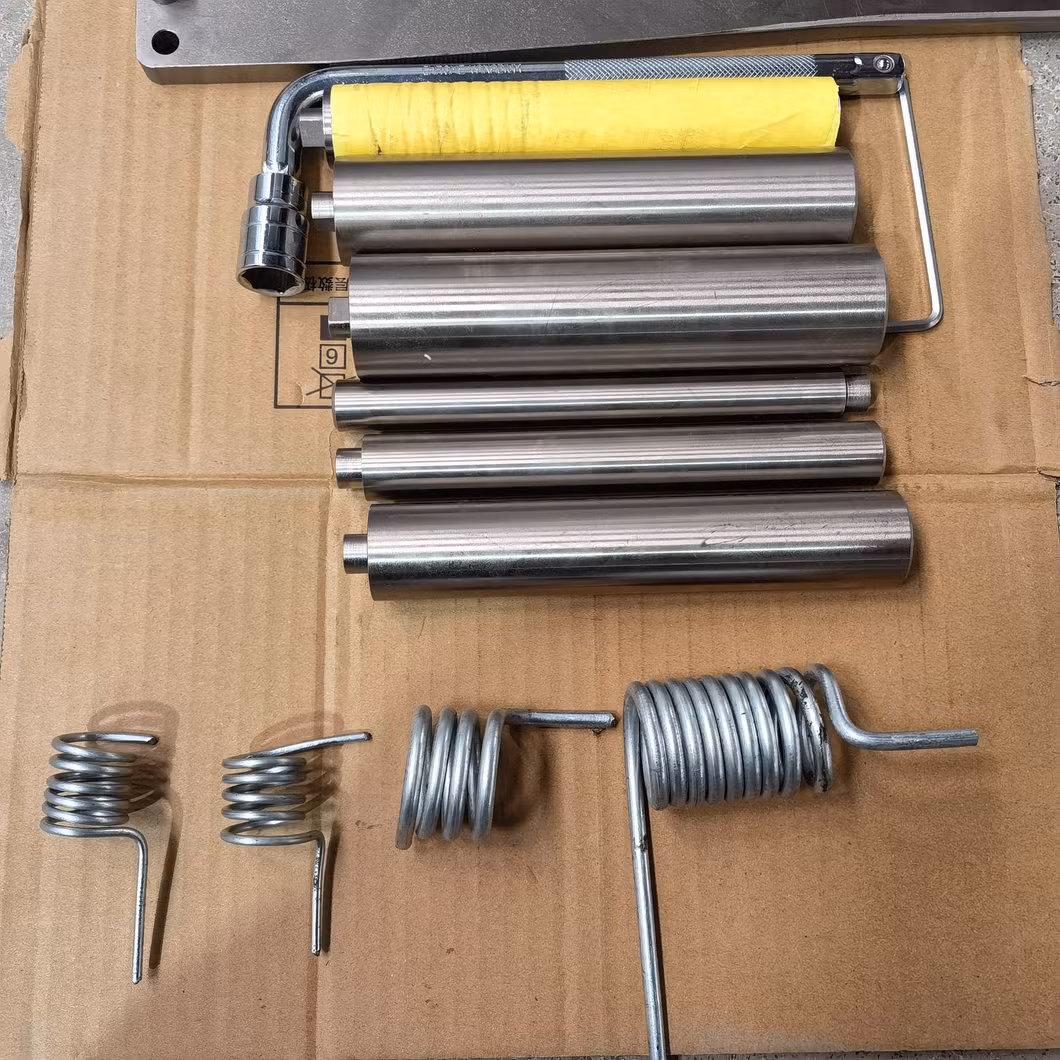

Mandrels		1set
Attachment tools		1set
Technical documents	User manual, packing list, certificate, etc.	1 set

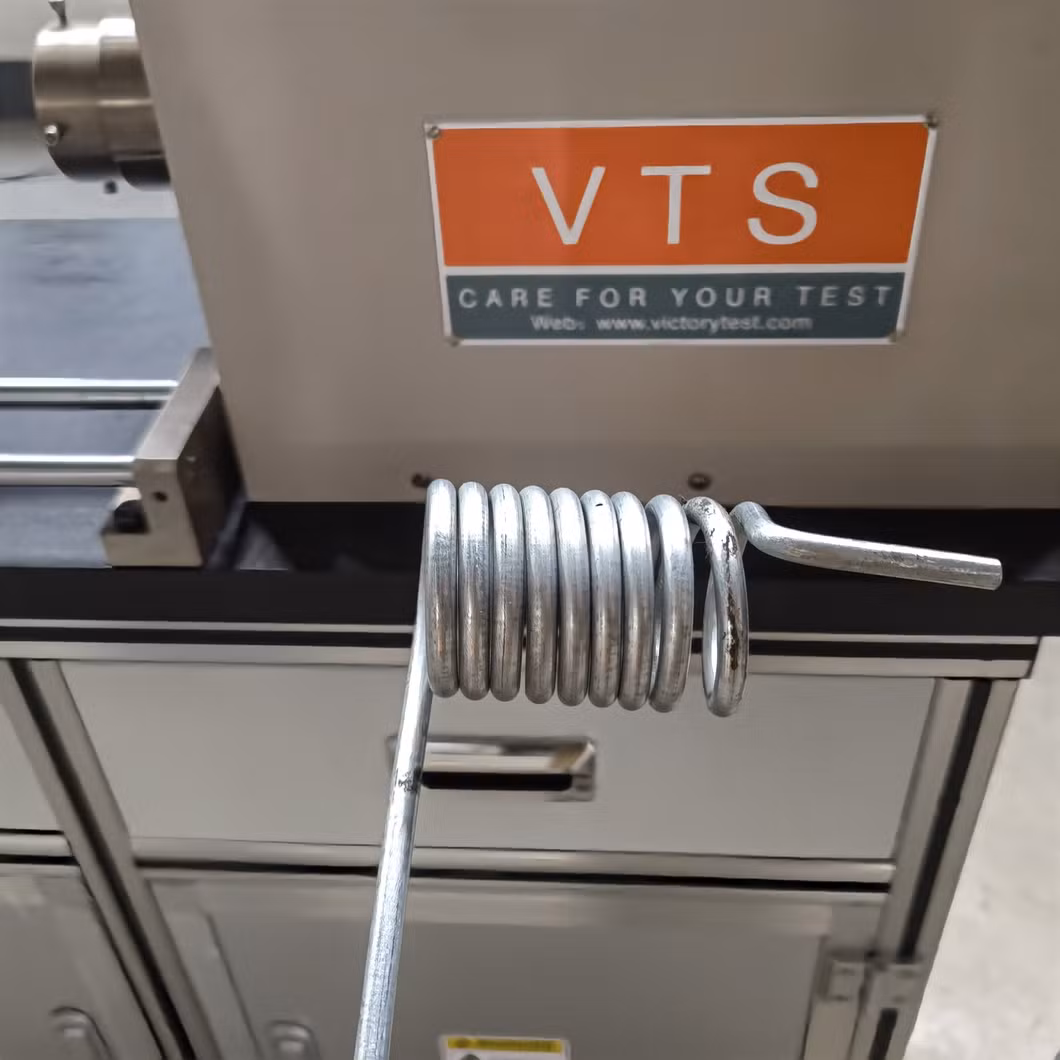

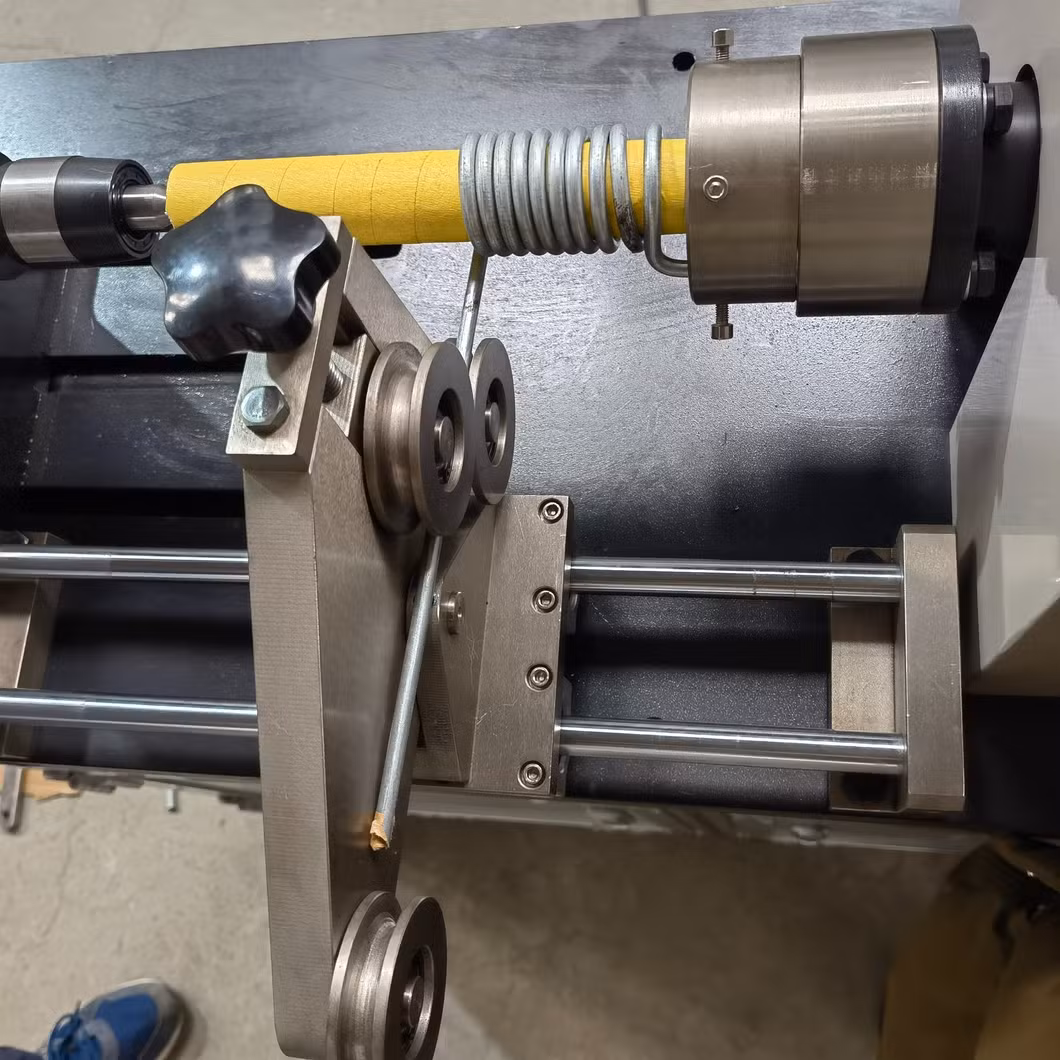

3. Photos for: Explore the Visual Splendor of Our Wire Wrapping Testing Machine: A Glimpse into Precision Engineering by Jinan Victory Instrument Co., Ltd.

Jinan Victory Instrument Co., Ltd (Victory Test - VTS) stands as a beacon of excellence in the realm of material testing machines and quality control testing equipment. Nestled in the heart of Jinan city, the capital of the vibrant Shandong province in northeastern China, we are strategically positioned just a short journey away from the bustling metropolises of Beijing and Shanghai. Our unwavering commitment is to provide a comprehensive, one-stop solution for our clients Quality Control needs concerning metal materials. With a powerhouse team of over 50 skilled professionals and an impressive legacy of more than 20 years, we swiftly deliver specialized testing solutions tailored to precise requirements.

As an esteemed ISO9001 CE certified high-tech enterprise, VTS excels in the innovative design, thorough research, meticulous manufacturing, and strategic marketing of mechanical property testing machines for metal materials. Our expansive array of testing machines encompasses an extensive range of applications, including tensile, compression, bending, torsion, impact, hardness, and fatigue testing. Each VTS product rigorously adheres to international testing standards such as ISO, ASTM, BS EN, TAPPI, and GB, complemented by our CE certification. Proudly, our high-caliber products have reached discerning clients in over 60 countries worldwide.

With a robust foundation of over 20 years of industry expertise, we are adept at offering optimal testing solutions rapidly, perfectly aligned with your specific testing requirements.

Our Advantages:
With an illustrious history of over two decades in the industry, we pride ourselves on swiftly delivering the perfect testing solutions tailored to meet your specific requirements.
1. As a professional manufacturer with more than 20 years of expertise, we offer unparalleled industry insights and precision.
2. Enjoy competitive pricing coupled with superior quality and optimal delivery times that exceed expectations.
3. We provide a comprehensive One-Stop solution for all your material testing machine needs.
4. Proudly recognized as an ISO 9001, SGS, and CE certified supplier, assuring you of our steadfast commitment to quality.
5. Benefit from a lifetime of technical support and service, ensuring seamless operation and peace of mind.

Sale Period Service:
Upon receipt of your Purchase Order, our efficient production process is promptly initiated.
For standard machines, immediate availability is ensured with ready stock.
For machines tailored to your specifications, anticipate a dedicated production time of approximately 2-4 weeks.
Our rigorous quality control measures guarantee that each machine is meticulously inspected to meet the highest standards before delivery.

After-Sales Service:
Typically, our warranty period extends for one year, offering you assurance and reliability.
We provide a comprehensive English operation manual along with an instructional video to facilitate ease of use.
If necessary, we offer onsite installation and training services to ensure your operations are up and running smoothly.
