ISO7500-1 Wdw-30 Computerized Tensile and Elongation Testing Machine
Available
377Product Description WDW
| Model NO. | 50mm |
| Type | 0.5 |
| Load Way | Static Load |
| Display | Computer Control |
| Weight | AC380V |
| Oil Cylinder Position | Tensile Test Compression Test, Bending Test etc. |
| Packaging Details | 300kN 500kN 600kN 1000kN 1500kN 2000kN |
| Standard | Metal,Steel,Wire Rope,Rubber,Plasticcable |
| Certificate | Plywood Case |
| Specification | VTS |
| Origin | 9024109000 |
| Production Capacity | <1000KN |
| Max Load | Tensile Testing Machine |
| Testing Machine Mode | OEM,Software Reengineering |
| Protection Class | 0.5grade |
| Application | <900kg |
| Test Standard | 380V |
| Material | Computer, Digital, Dial |
| Impact Energy | Plastic Pipe Hydrostatic Pressure and Burst Tester |
| Testing Standard | 10MPa, 16MPa, 25MPa, 3 Stations |
| Testing Pipe | +50PA~ +1500PA |
| Usage |
1. Applications & functions

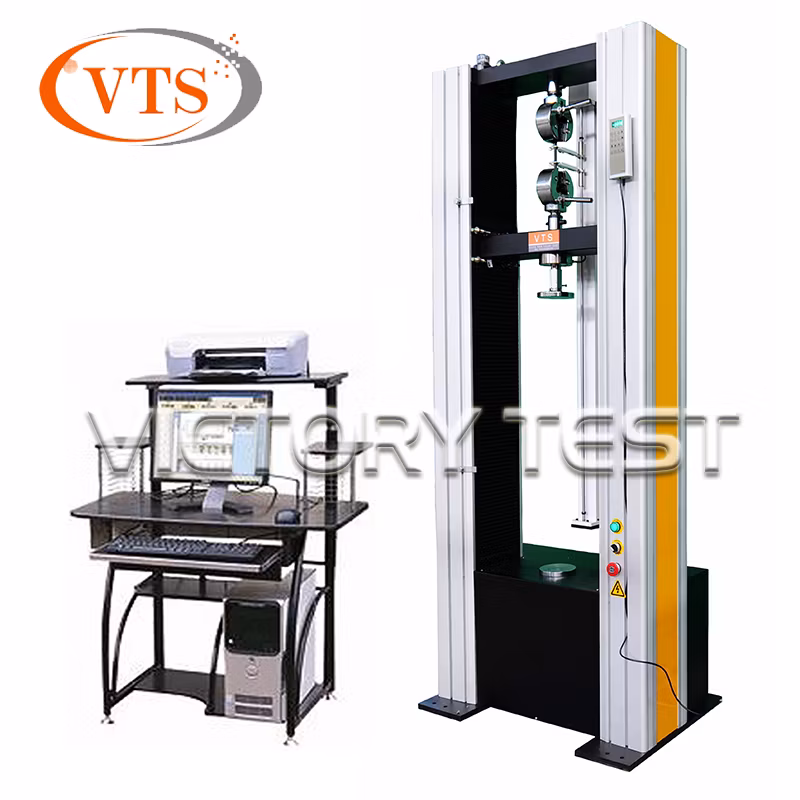

This WDW-30 Computerized Electromechanical Universal Testing Machine adopts double columns and tabletop type structure, it is used to do tensile, compression and bending test of metal and non-metal materials. It is an ideal testing machine for enterprises quality control department, teaching in university and colleges or scientific research institution, etc.
Test material and industry:
PVC Pipe, PE Pipe, Rubber, Plastic, Composite Materials, Cable, Aluminum, Copper, Textiles, Nonwoven, Wood Products, Spring, Waterproof Roll, etc.
2. Main Features
Testing standard:
ISO9969, ISO 6259-1, ISO7500-1, ASTM E4, ISO37, ASTM D412, ASTM A730, ASTM D638, ASTM D790, ASTM E4, ISO6892, ISO7438, EN 10002-4, ASTM D1002 and so on.
3. Main Technical Specifications:
| Parameter Model | WDW-30 |
| Max Load Capacity | 30kN |
| Range of Testing Force | 0.4% - 100% |
| Accuracy of force | ±0.5%/Class 0.5 (better than ASTM E4, ISO7500-1) |
| Resolution of force | 1/500000 |
| Displacement measuring accuracy | ±0.5% |
| Resolution of crosshead displacement (mm) | ≥0.01 |
| Deformation accuracy | ±0.5%/Class 0.5 (better than ASTM E83, ISO9513) |
| Crosshead moving speed (mm/min) | 0.005 - 500 |
| Max. tensile space (mm) | 1200 |
| Max. test width (mm) | 400 |
| Tensile grip for flat specimen (mm) | 0-7mm, 7-14mm |
| Compression platen diameter (mm) | Φ120 |
| Power supply | 1-phase, 220V±10%, 50Hz/60Hz |
Jinan Victory Instrument Co., Ltd. (Victory Test - VTS) stands as a beacon of excellence in the realm of material testing machines and quality control testing equipment. Nestled in the vibrant city of Jinan, the capital of Shandong province in China, VTS is strategically positioned in the northeast, just a short journey from both Beijing and Shanghai. Known for its professionalism in both manufacturing and exporting, VTS has solidified its reputation for delivering top-notch testing solutions. Our unwavering commitment is to provide a comprehensive, one-stop solution for the Quality Control of metal materials. Backed by a robust team of over 50 dedicated professionals and enriched by more than two decades of industry expertise, we are poised to deliver professional testing solutions with unmatched speed and precision.
Victory Test Systems (VTS) proudly upholds the highest standards as an ISO9001 and CE certified high-tech enterprise. Our core competency lies in the design, research, manufacturing, and marketing of cutting-edge metal materials mechanical property testing machines. These versatile machines are meticulously crafted to handle a broad spectrum of testing requirements including tensile, compression, bending, torsion, impact, hardness, fatigue, and more. Each product adheres to globally recognized standards such as ISO, ASTM, BS EN, TAPPI, and GB. With the prestigious CE certification under our belt, VTS products have earned the trust of clients across more than 60 countries worldwide.
Leveraging over 20 years of rich experience, we are adept at swiftly customizing ideal testing solutions tailored to your specific requirements, ensuring your needs are met with precision and expertise.
Our Key Advantages:
With over two decades of expertise, we swiftly provide optimal testing solutions tailored to your specific requirements.
1. Esteemed professional manufacturer with over 20 years of experience
2. Competitive pricing coupled with superior quality and optimal delivery times
3. Comprehensive one-stop solutions for all your material testing machine needs
4. Certified excellence with ISO 9001, SGS, and CE qualifications
5. Enduring lifetime technical support and unparalleled service
Sales Period Service:
Upon receiving your purchase order, we efficiently organize production.
Standard machines are readily available from stock.
For custom-built machines, production spans approximately 2-4 weeks.
We enforce rigorous quality control, ensuring each machine is meticulously inspected prior to delivery.
Comprehensive After-Sales Service:
Our standard warranty period spans one year.
We provide an English operation manual along with an instructional operation video.
Onsite installation and training services are available if required.
