Torsion Testing Machine

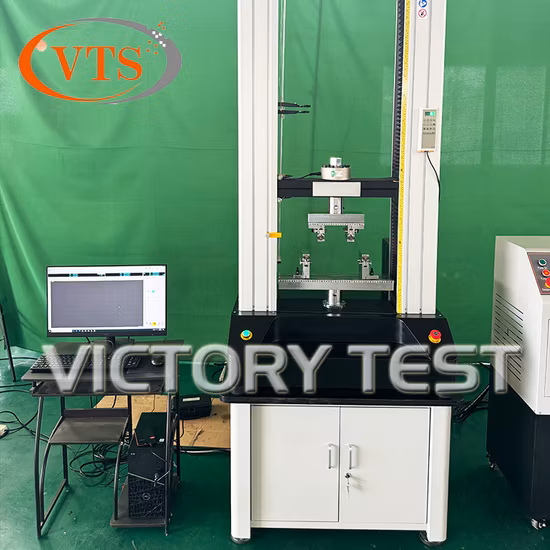

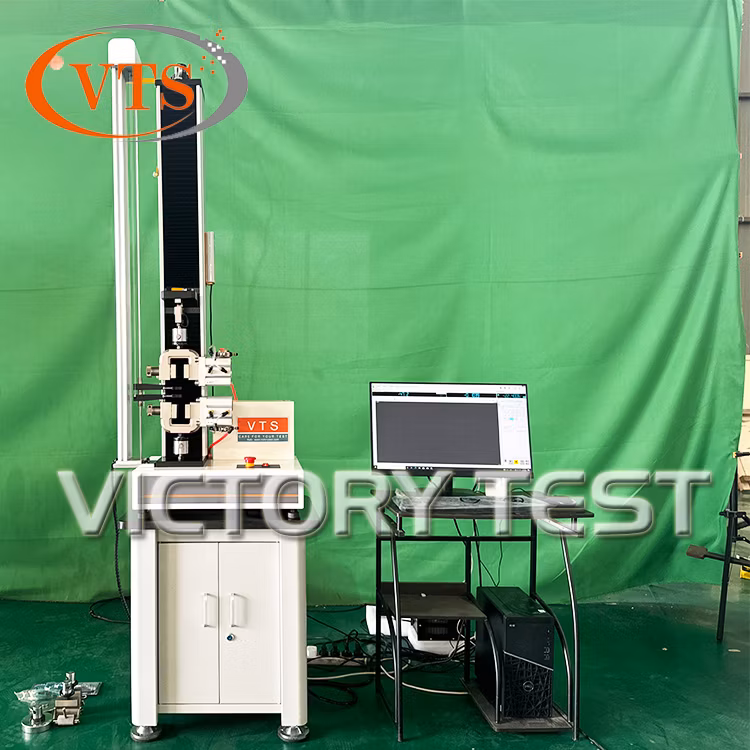

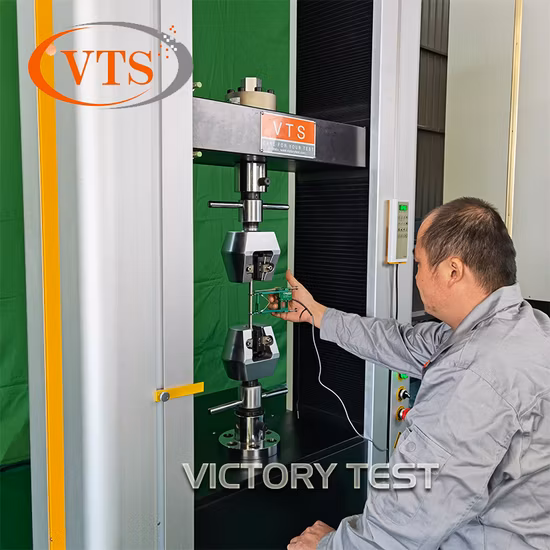

Single Wire Tensile Testing Machine 50kN Single Wire Tensile Testing Equipment
Available
378Product Description 5KN 10KN 50KN 100KN 200KN 300KN Electronic Universal Tensile Strength Testing Machine
| Model NO. | 50mm |
| Type | 0.5 |
| Load Way | Static Load |
| Display | Computer Control |
| Weight | AC380V |
| Oil Cylinder Position | Tensile Test Compression Test, Bending Test etc. |
| Packaging Details | 300kN 500kN 600kN 1000kN 1500kN 2000kN |
| Standard | Metal,Steel,Wire Rope,Rubber,Plasticcable |
| Certificate | Plywood Case |
| Specification | VTS |
| Origin | 9024109000 |
| Production Capacity | <1000KN |
| Max Load | Tensile Testing Machine |
| Testing Machine Mode | OEM,Software Reengineering |
| Protection Class | 0.5grade |
| Application | <900kg |
| Test Standard | 380V |
| Material | Computer, Digital, Dial |
| Impact Energy | Plastic Pipe Hydrostatic Pressure and Burst Tester |
| Testing Standard | 10MPa, 16MPa, 25MPa, 3 Stations |
| Testing Pipe | +50PA~ +1500PA |
| Usage |
1. Applications & functions

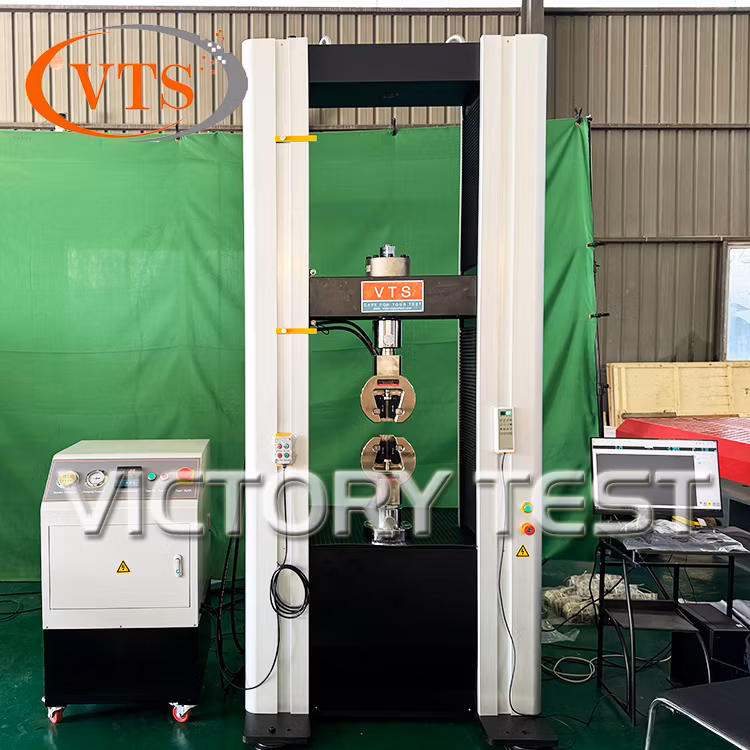

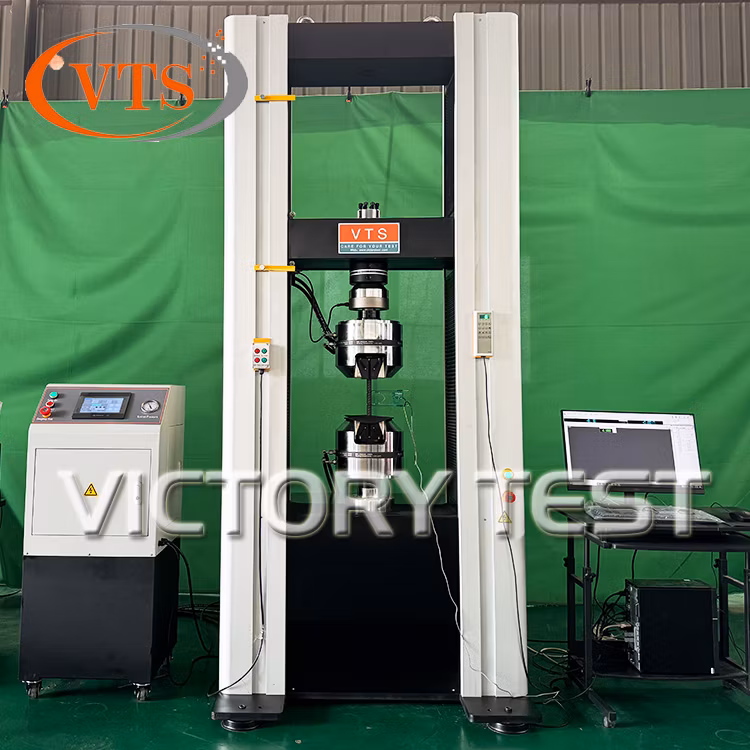

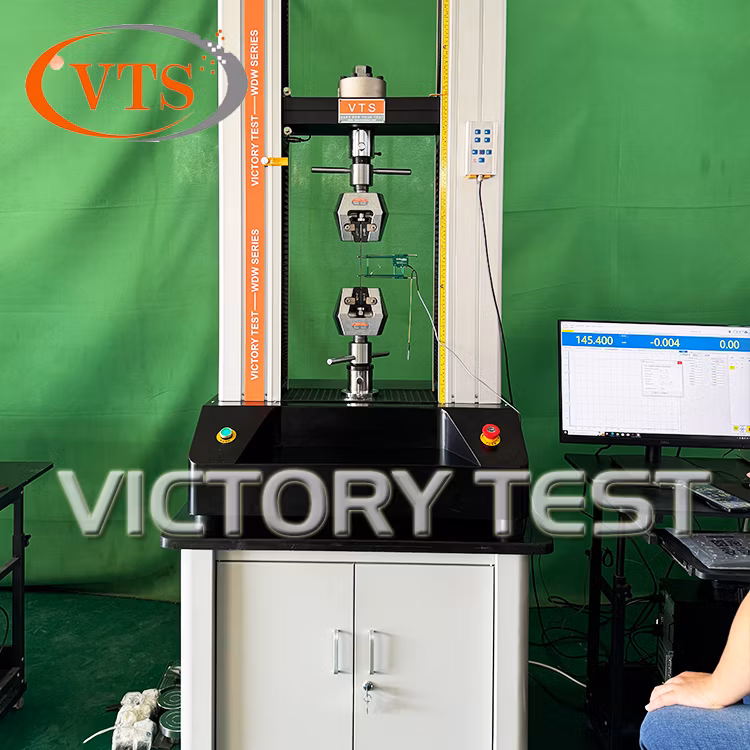

These WDW Series Computerized Electromechanical Universal Testing Machines are mainly used to do tensile, compression and bending test of metal and non-metal materials. It is ideal testing machines for enterprises quality control department, teaching in university and colleges or scientific research institution, etc. It is calibrated according to ASTM E4 and ISO75001. It can meet test standards ISO 6892, ASTM E4, ASTM E8, ASTM A370, ASTM D638, ASTM D790, ASTM E4, EN 10002-4, EN 10002-1, ISO 7500-1, ASTM D1002 and so on. The testing materials are including Steel, Metal, Rubber, Plastic, Cord, Composite Materials, Cable, Wire, Aluminum, Copper, Textiles, Food, Packaging, Nonwoven etc.
2. Main Features

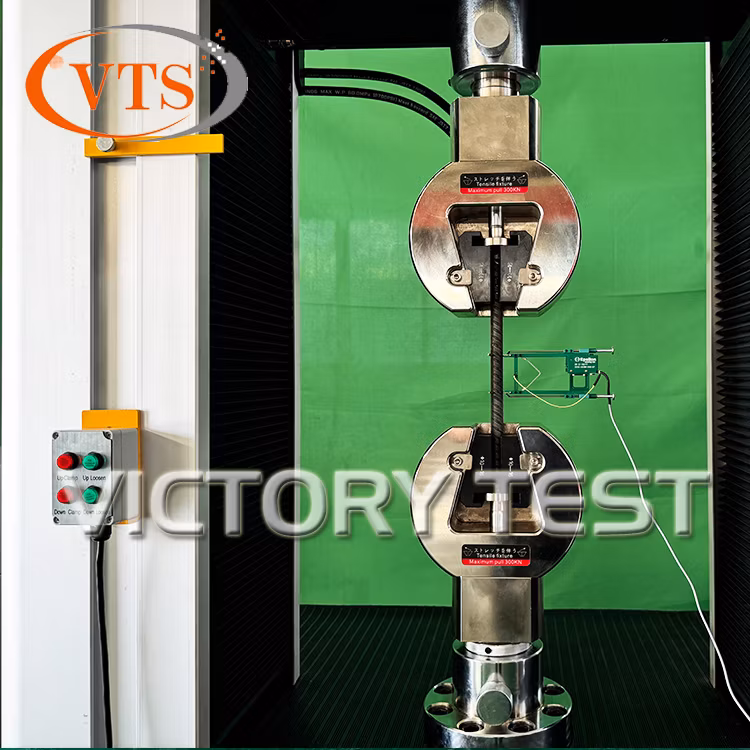

This machine equips alternating servo motor for driving crosshead and imported photoelectric encoder for displacement measure. The long-travel extensometer is used for elongation rate test of specimen. Control software can automatically finger out routine data, such as tensile modulus of elasticity, extend rate after rupture, non-proportional extend strength Rp0.2, etc. It can realize three close loops control and real time display many testing curves of force-displacement, force-time, and stress-strain.
3. Main Technical Specifications:
| Model Specifications |
WDW-5 | WDW-10 | WDW-20 | WDW-50 | WDW-100 | WDW-200 | WDW-300 |
| Max Load Capacity (kN) | 5 | 10 | 20 | 50 | 100 | 200 | 300 |
| Load Accuracy | ±0.5% of applied force | ||||||
| Load Resolution | Max. testing force 1/500000 | ||||||
| Test Zones | Single | Dual (upper for tensile, lower for compression) or Single (lower for tensile, compression) |
|||||
| Test Speed Range | 0.005-500 mm/min | ||||||
| Strain Accuracy | ≤±0.5% | ||||||
| Crosshead Travel (mm) | 700 | 600 | 650 | 650 | 550 | ||
| Compression Space (mm) | - | 500 | 500 | 500 | 600 | ||
| Space Between Columns | - | 400 | 550 | 550 | 560 | ||
| Jaw dimension (mm) |
0-3 | 0~7 | 0~14 | 0~14 | 0~20 | ||
| - | φ4~φ9 | φ4~φ14 | φ4~φ20 | Φ9~φ26 | |||
| Power Supply | 1-ph, 220V±10%, 50Hz/60Hz | 3-ph, 380V±10%, 50Hz/60Hz | |||||
| Dimension (mm) | 530×380×1450 | 760×500×1800 | 880×710×1800 | 1040×630×2040 | 1120×710×2210 | ||
| Weight (kg) | 150 | 450 | 800 | 900 | 1300 | ||
Jinan Victory Instrument Co., Ltd (Victory Test - VTS) is a professional manufacturer and exporter of material testing machines and quality control testing equipment in Jinan city, Shandong province, China. Jinan city is the capital of Shandong province, which is located in the northeast of China (about 2 hours away from Beijing and Shanghai.) We are dedicated to offer one stop solution for customers Quality Control of metal materials. With more than 50 staffs & more than 20 years experience, a professional testing solution can be offered quickly.
VTS is an ISO9001 CE certified high-tech enterprises, who focus on designing, researching, making and marketing on metal materials mechanical property testing machines. The testing machines cover most of the testing items, like tensile, compression, bend, torsion, impact, hardness, fatigue, etc. VTS products can meet ISO, ASTM, BS EN, TAPPI, GB, etc testing standards. We have passed CE certificate, VTS products have been exported to more than 60 countries.
As we have more than 20 years experience, an ideal testing solution can be offered quickly based on your testing requirement.
Our Advantages:
As we have more than 20 years experience, an ideal testing solution can be offered quickly based on your testing requirement.
1. Professional manufacturer for more than 20 years
2. Reasonable price with good quality & best delivery time
3. One-Stop solution for material testing machines
4. ISO 9001 SGS CE etc qualified supplier
5. Lifetime technical support and service
Sale period service:
After we get your P.O., the production can be quickly arranged.
For common standard machine, it is in stock.
For customized produced machine, the production time is about 2-4 weeks.
Strictly control of quality, each machine is well inspected before delivery.
After-sales service:
The warranty period is usually one year.
English language operation manual and operation video are offered.
Onsite installation and training service can be offered if its necessary.
