WDW-300S Steel Strand Stress Relaxation Testing Machine
(new structure, easy calibration, 300kN)

WDW-500S Steel Strand Stress Relaxation Testing Machine
(new structure, easy calibration, 500kN)


This machine is used to do stress-relaxation test of steel strand, galvanized steel wire, indented wire etc metal materials. The host machine adopts horizontal structure, adjust work space by lead screw, and the transmission system is inside the machine base, the machine has very high stiffness, which guarantee the accuracy of test results.
PC realizes variety of control modes, which include constant test force, constant displacement etc closed-loop control and test process control, all kinds of control modes can be switched without impact.
The computer can calculate the test results of 1000 hours according to the test data not more than 200 hours, it can also do continuous test of 1000 hours. The computer real time displays test force and test curves, can save and print the test results, test curves and test report.
New feature: the load frame is equipped with load frame, which is convenient for future load calibration.
New need to buy any additional load frame for calibration.


2. Standards:

Test standard:
--ISO15630-3: 2010 Steel for reinforcement and prestressing of concrete- Test methods part 3: prestressing steel
--ASTM E328-13: Standard test methods for stress relaxation for materials and structures
--ASTM A416 Standard specification for low-relaxation, seven-wire steel strand for prestressed concrete

3. Main Technical Specifications:

1. Max test force: 500kN
2. Measuring range of test force: 10-500kN
3. Test force resolution: 5N
4. Accuracy of indicating force: ≤±1%
5. Loading speeding: 100-5000N/s, arbitrary setting

1. Loading speed relaxation test space: 2100mm
2. Chuck displacement speed: 0.001-25mm/min
3. Accuracy of chuck displacement speed: ±0.5%
4. Displacement resolution: 0.001mm
5. Tensile stroke: 0-100mm
6. Creep of load cell: ≤0.2% (within 30 minutes)
7. Steel strand test fixture: φ9.53, φ11.11mm, φ12.7, φ15.24. Total: four sets of fixtures
8. Resolution of temperature sensor: 0.1ºC
9. Accuracy of temperature sensor: 0.3ºC
10. Machine size: 2400*600*1100mm
11. Weight of the load frame: 1500kg
12. Power supply: 3-phase, 5 wires (3 live lines L, 1 null line N, 1 earth line PE) 380V, 50Hz, 3kW

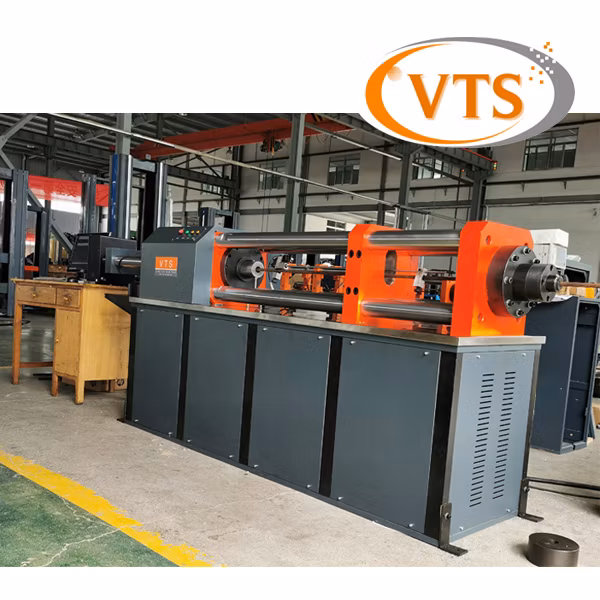

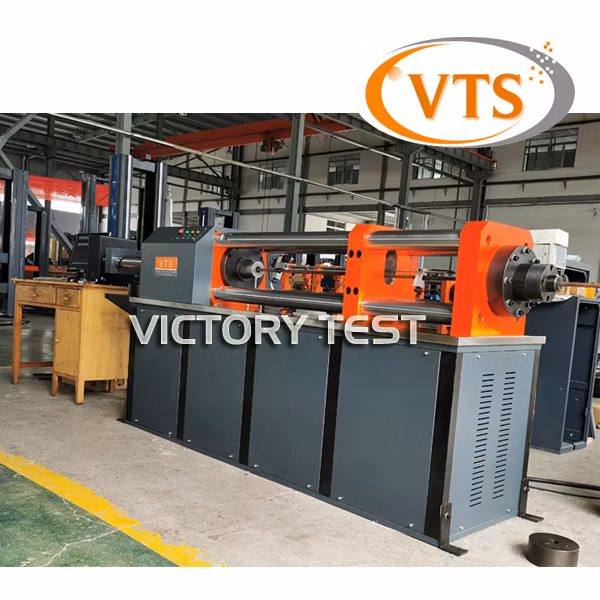

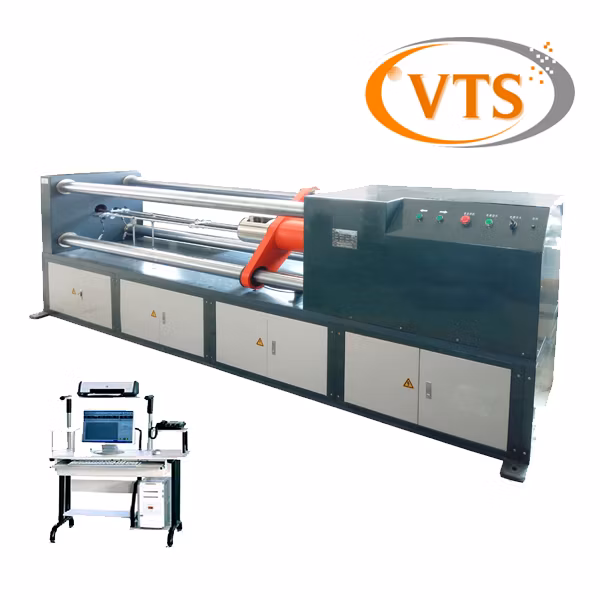

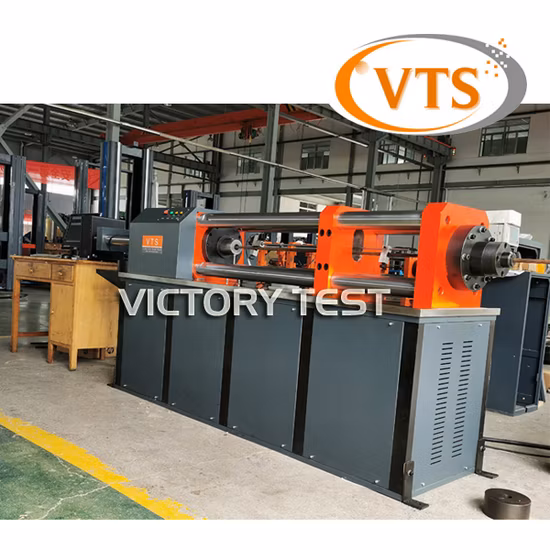

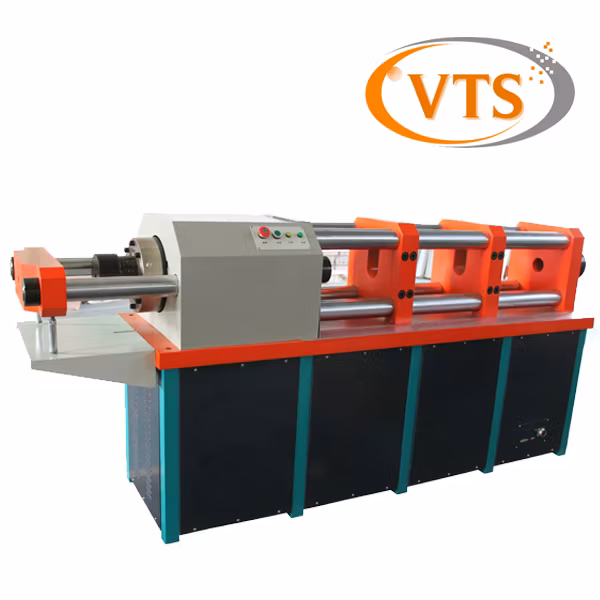

4. Photos for Steel Strand Stress Relaxation Testing Machine

Company Profile





Jinan Victory Instrument Co., Ltd (Victory Test - VTS) is a professional manufacturer and exporter of material testing machines and quality control testing equipment in Jinan city, Shandong province, China. Jinan city is the capital of Shandong province, which is located in the northeast of China (about 2 hours away from Beijing and Shanghai.) We are dedicated to offer one stop solution for customers Quality Control of metal materials. With more than 50 staffs & more than 20 years experience, a professional testing solution can be offered quickly.

VTS is an ISO9001 CE certified high-tech enterprises, who focus on designing, researching, making and marketing on metal materials mechanical property testing machines. The testing machines cover most of the testing items, like tensile, compression, bend, torsion, impact, hardness, fatigue, etc. VTS products can meet ISO, ASTM, BS EN, TAPPI, GB, etc testing standards. We have passed CE certificate, VTS products have been exported to more than 60 countries.

As we have more than 20 years experience, an ideal testing solution can be offered quickly based on your testing requirement.



Customer Praise & Visit





Packaging & Shipping





After Sales Service

Our Advantages:
As we have more than 20 years experience, an ideal testing solution can be offered quickly based on your testing requirement.
1. Professional manufacturer for more than 20 years
2. Reasonable price with good quality & best delivery time
3. One-Stop solution for material testing machines
4. ISO 9001 SGS CE etc qualified supplier
5. Lifetime technical support and service

Sale period service:
After we get your P.O., the production can be quickly arranged.
For common standard machine, it is in stock.
For customized produced machine, the production time is about 2-4 weeks.
Strictly control of quality, each machine is well inspected before delivery.

After-sales service:
The warranty period is usually one year.
English language operation manual and operation video are offered.
Onsite installation and training service can be offered if its necessary.
