377Product Description
| Model NO. | 50mm |
| Type | 0.5 |
| Load Way | Static Load |
| Display | Computer Control |
| Weight | AC380V |
| Oil Cylinder Position | Tensile Test Compression Test, Bending Test etc. |
| Packaging Details | 300kN 500kN 600kN 1000kN 1500kN 2000kN |
| Standard | Metal Materilas, U and V Notch |
| Certificate | Wooden Box |
| Specification | VTS |
| Origin | 9024109000 |
| Production Capacity | 150j 300j 450j 600j 750j |
| Max Load | Pendulum Charpy Impact Testing Machine |
| Testing Machine Mode | OEM |
| Protection Class | 0.5grade |
| Application | <900kg |
| Test Standard | 380V |
| Material | Computer, Digital, Dial |
| Impact Energy | Plastic Pipe Hydrostatic Pressure and Burst Tester |
| Testing Standard | 10MPa, 16MPa, 25MPa, 3 Stations |
| Testing Pipe | +50PA~ +1500PA |
| Usage |

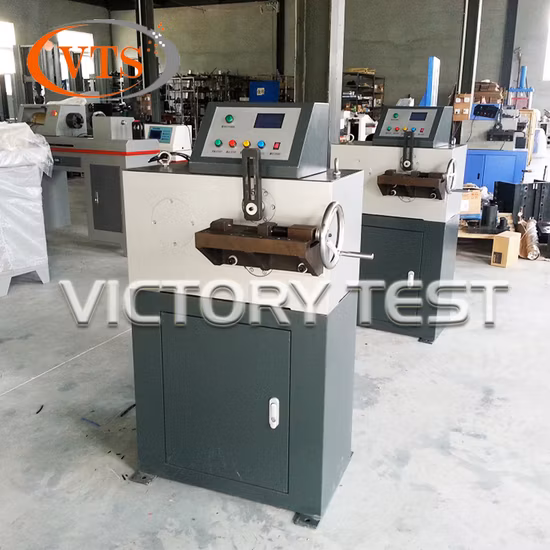

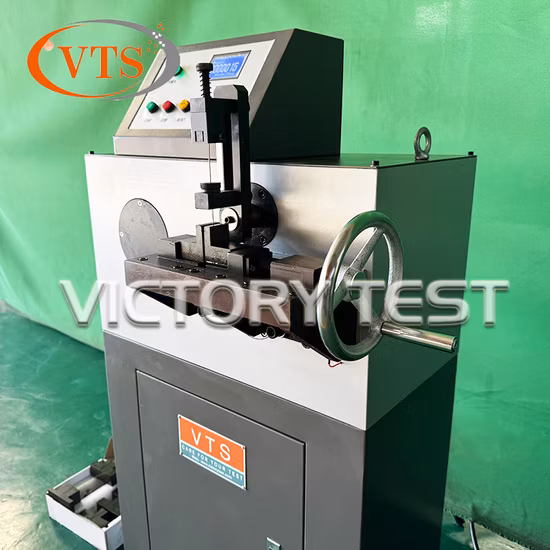

Wire Repeated Bending Test Machine
1. Application & Features:
The steel rebar bend and reverse bending testing machine can be used to do bend and reverse bend test for steel bar, rebar, round bar. It is an important equipment to test the recurvating character of screw thread steel bar in steel factory and architectural company.
The testing machine has many advantages, such as small size, compact structure, easy operation, low noise, smooth and steady running, directly bend angle display and easy lubricating.
2. Standards:
It can conform to testing standard such as SS 560, AS/NZS 4671, ISO 15630-1,2,3, ASTM A615/A615M ,BS EN 4449,BS EN 10025, ISO 6935-2, ASTM A706, NFA 35-016-1, JIS G3112 etc.
3. Main Technical Specifications:
| Model | GW-40B | GW-50B |
| Range of bend rebars diameter | φ8-φ32mm | φ8-φ50mm |
| Angle of rebar bending test | 0°-180°at will | 0°-180°at will |
| Angle of rebar rebending test | 0°-90°at will | 0°-90°at will |
| Rotating speed of working plate | ≤ 3.7 r/min | ≤ 3.0 r/min |
| Distance of roller center | 165mm | 230mm |
| Diameter of working plate | φ580mm | φ860mm |
| Motor power supply | 3-phase, 380V, 50Hz/60Hz (Special power can also be specified according to requirements) |
3-phase, 380V, 50Hz/60Hz (Special power can also be specified according to requirements) |
| Dimensions of Host Machine (Length*Width*Height) |
1050×750×1200mm | 1460×1200×1200mm |
| Weight of Host machine | 750kg | 1800kg |

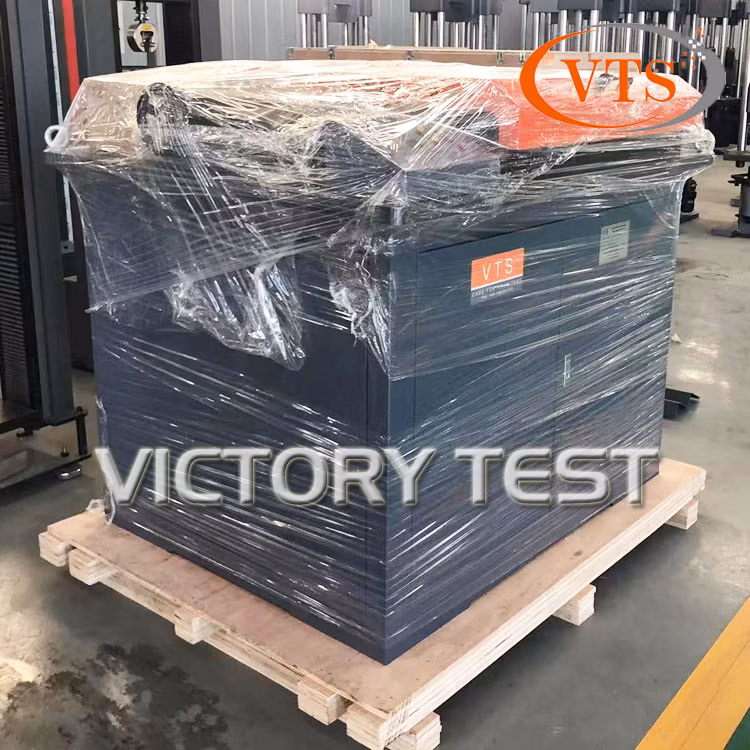

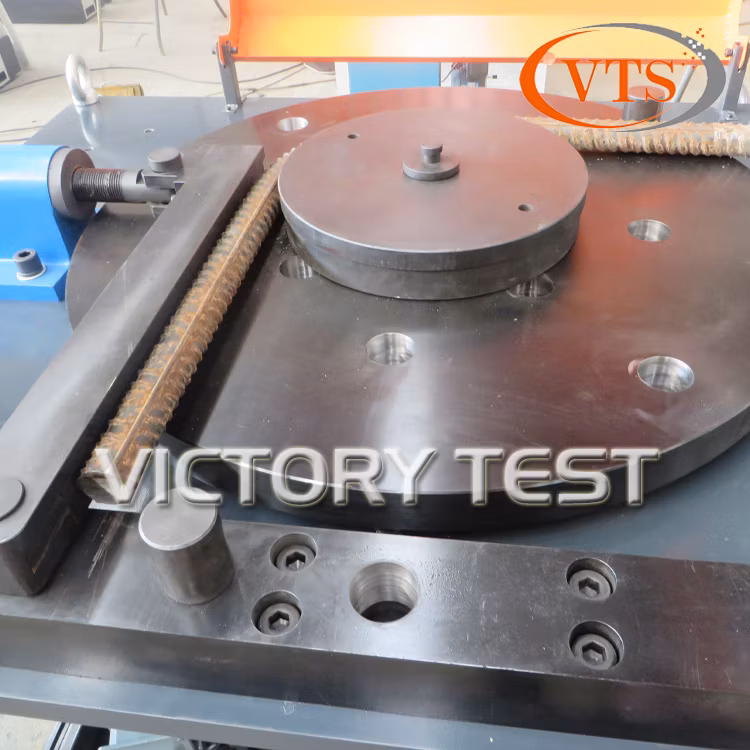

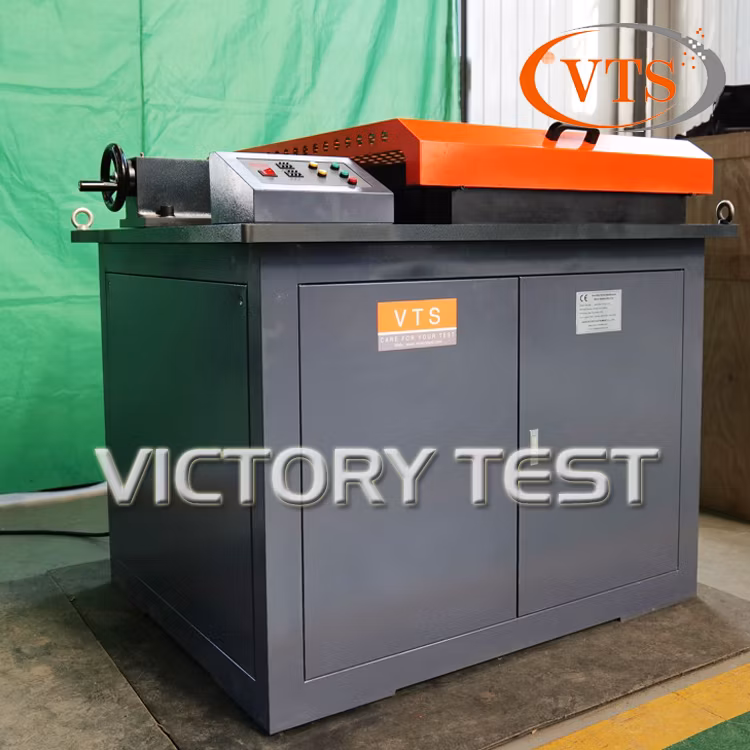

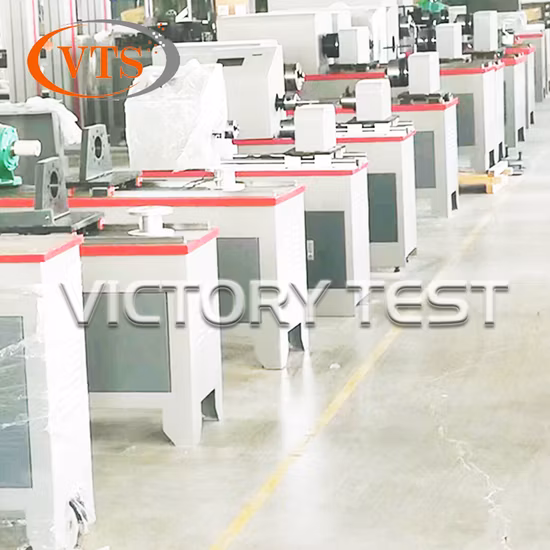

4. Photos for Wire Repeated Bending Test Machine in our factory
-Notch Cutting Machine Charpy Projector Cooling Chamber(-60,-100) -196, liquid nitrogen cooling
Jinan Victory Instrument Co., Ltd (Victory Test - VTS) is a professional manufacturer and exporter of material testing machines and quality control testing equipment in Jinan city, Shandong province, China. Jinan city is the capital of Shandong province, which is located in the northeast of China (about 2 hours away from Beijing and Shanghai.) We are dedicated to offer one stop solution for customers Quality Control of metal materials. With more than 50 staffs & more than 20 years experience, a professional testing solution can be offered quickly.
VTS is an ISO9001 CE certified high-tech enterprises, who focus on designing, researching, making and marketing on metal materials mechanical property testing machines. The testing machines cover most of the testing items, like tensile, compression, bend, torsion, impact, hardness, fatigue, etc. VTS products can meet ISO, ASTM, BS EN, TAPPI, GB, etc testing standards. We have passed CE certificate, VTS products have been exported to more than 60 countries.
As we have more than 20 years experience, an ideal testing solution can be offered quickly based on your testing requirement.
Our Advantages:
As we have more than 20 years experience, an ideal testing solution can be offered quickly based on your testing requirement.
1. Professional manufacturer for more than 20 years
2. Reasonable price with good quality & best delivery time
3. One-Stop solution for material testing machines
4. ISO 9001 SGS CE etc qualified supplier
5. Lifetime technical support and service
Sale period service:
After we get your P.O., the production can be quickly arranged.
For common standard machine, it is in stock.
For customized produced machine, the production time is about 2-4 weeks.
Strictly control of quality, each machine is well inspected before delivery.
After-sales service:
The warranty period is usually one year.
English language operation manual and operation video are offered.
Onsite installation and training service can be offered if its necessary.
