Dynamic Testing Machine For Comprehensive Material Testing Solutions

Product Description

Color: Default Color
Size: Default Size
Origin: China
Usage: Default Usage
Type: Default Type
Efficiency: 99.9% Type

Category: Dynamic Fatigue Testing machine

Get Inquiry

Description:

Model NO.	50mm
Type	0.5
Load Way	Static Load
Display	Computer Control
Weight	AC380V
Oil Cylinder Position	Tensile Test Compression Test, Bending Test etc.
Packaging Details	300kN 500kN 600kN 1000kN 1500kN 2000kN
Standard	Rebar.Steel Bar, Metal, Bolt and Nut, etc
Certificate	Plywood Case
Specification	VTS
Origin	9024109000
Production Capacity	>1000KN
Max Load	Pendulum Charpy Impact Testing Machine
Testing Machine Mode	OEM
Protection Class	0.5grade
Application	<900kg
Test Standard	380V
Material	Computer, Digital, Dial
Impact Energy

Product Description

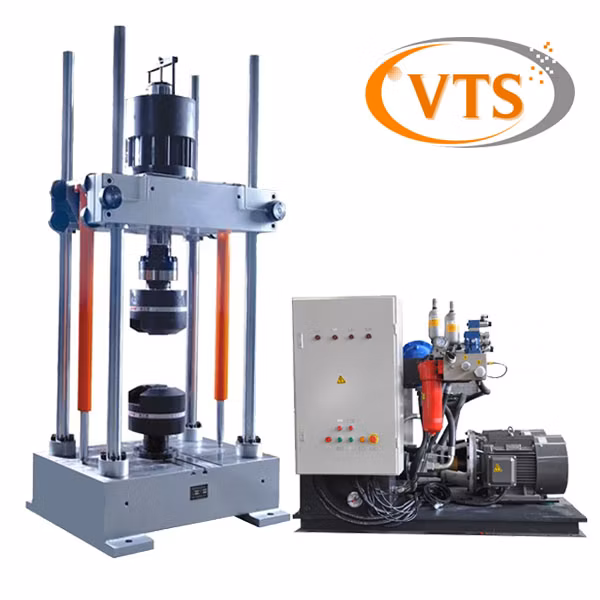

PWS Series Electric-hydraulic Servo Dynamic& Static Universal Testing Machine

1. Application
The PWS series electric-hydraulic servo dynamic & static universal testing machine is your go-to solution for a comprehensive range of material and component mechanics performance tests. This state-of-the-art machine is expertly designed for static and dynamic mechanical testing, including tensile, compression, low cycle fatigue, high cycle fatigue, and crack growth tests. Its versatility makes it an indispensable tool in technologically demanding fields like aerospace, maritime, and defense industries, where precision and reliability are paramount.

2. Product features
Harnessing the power of cutting-edge technology, this machine integrates an internationally acclaimed dynamic electric-hydraulic servo test system. It features advanced unitization, along with BTW (Basic Test Ware) and MPT (Multipurpose Test Ware) software, providing a robust platform for versatile testing applications. Its standardized and modular design enhances system stability and reliability, ensuring consistent performance. The key elements and components are crafted using the latest global technological advancements, guaranteeing superior quality and precision in every test.

3. Main Technical Parameters for Unmatched Precision

Type		PWS- 50	PWS- 100	PWS- 250	PWS- 500
Maximum testing force kN	static	50	100	250	500
	dynamic	±35	±70	±175	±350
Accuracy of testing force	Load	±0.5% or ±1% from 2%- 100% of F.S.
	Displacement	±0.5%/1 of F.S.
	Extension	±0.5%/1 of F.S.
Frequency range (Hz)		0.01- 50/100			0.01- 10/35
Amplitude (mm)		± 75/100/125
Wave forms		Sine wave, Square wave, Triangular wave, etc.

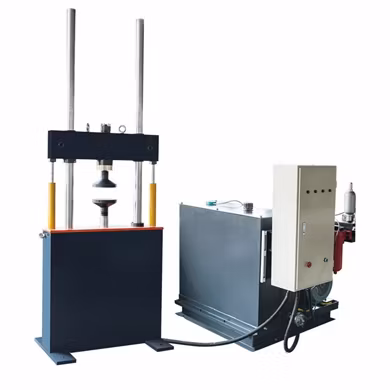

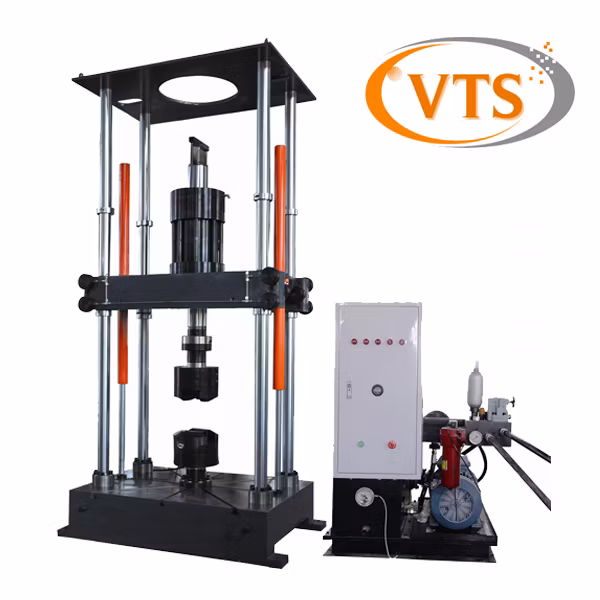

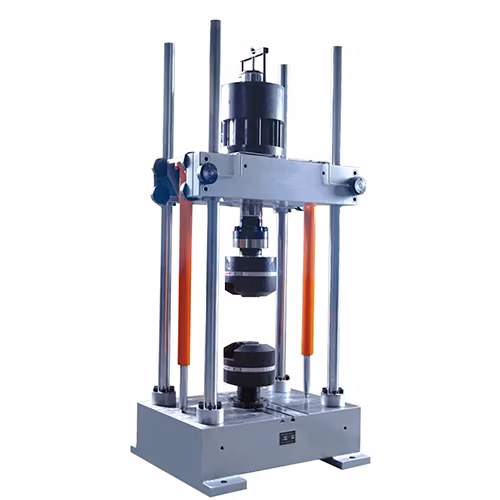

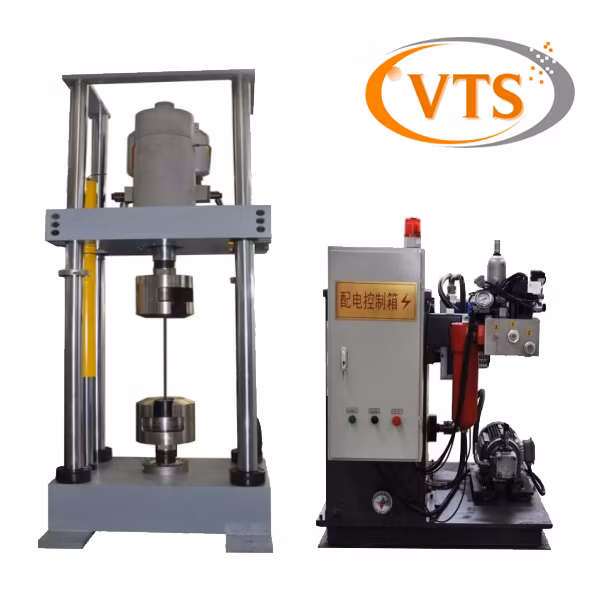

Framework forms		Double column with actuator at the bottom			Four column with actuator on the top
Column spacing (mm)		600	600	720	850×500
Testing space (mm)		600	600	800	1000
Specimen clamping		Hydraulic clamp
Crosshead		Hydraulic lock and test space adjusted by hydraulic elevating actuator

Jinan Victory Instrument Co., Ltd (Victory Test - VTS) is a trailblazer in the realm of material testing machines and quality control equipment, proudly leading the charge as both a manufacturer and exporter. Nestled in the dynamic city of Jinan, the vibrant capital of Shandong province, China, our strategic location places us just about 2 hours away from the bustling metropolises of Beijing and Shanghai, ensuring seamless connectivity with major economic centers.Our mission is to be your ultimate source for quality control solutions, delivering a comprehensive, one-stop service for metal material testing. With a passionate team of over 50 specialists and more than two decades of industry expertise, we are committed to providing professional, efficient, and innovative testing solutions that set new standards for speed and precision.

VTS is a pioneering high-tech enterprise, proudly holding ISO9001 and CE certifications. We excel in the design, research, manufacture, and marketing of mechanical property testing machines specifically tailored for metal materials. Our extensive product line includes sophisticated machines for tensile, compression, bending, torsion, impact, hardness, and fatigue testing, all crafted to comply with a wide array of international standards such as ISO, ASTM, BS EN, TAPPI, and GB. Our CE-certified products have earned a prestigious global presence, spanning over 60 countries.

With more than two decades of distinguished experience, we offer rapid and customized testing solutions, meticulously crafted to fulfill your unique requirements. We are dedicated to ensuring excellence and precision at every stage, elevating your testing experience to new heights.

Our Advantages:
Leveraging over two decades of industry expertise, we are adept at crafting swift and exact testing solutions that are precisely tailored to your unique requirements.
1. We boast over 20 years as a renowned professional manufacturer, embedding trust and reliability in every product.
2. We offer competitive pricing without compromising on quality, ensuring timely delivery that meets your expectations.
3. We provide comprehensive, one-stop solutions that cater to every facet of your material testing machine needs, ensuring a seamless experience.
4. As a certified supplier boasting ISO 9001, SGS, and CE credentials, our esteemed qualifications speak to our dedication to quality.
5. Enjoy lifetime technical support and service, ensuring your product remains operational and efficient for years.

Sale period service:
Upon receipt of your purchase order, we promptly commence a streamlined production schedule, guaranteeing both efficiency and speed in our process.
For universally standard machines, we keep an ample inventory on hand, ready to fulfill your immediate requirements without delay.
Customized machines are crafted with meticulous precision and are typically completed within a 2-4 week production timeframe.
We uphold stringent quality control standards, ensuring each machine undergoes thorough inspection before it reaches you.

After-sales service:
Our robust warranty period spans a full year, offering you the assurance and peace of mind you deserve.
We provide comprehensive English language operation manuals and instructional videos, simplifying the operation for users and enhancing user-friendliness.
Our dedicated team offers onsite installation and training services, ensuring smooth integration and efficient operation of your new equipment.
