377Product Description NDX
| Model NO. | 50mm |
| Type | 0.5 |
| Load Way | Static Load |
| Display | Computer Control |
| Weight | AC380V |
| Oil Cylinder Position | Tensile Test Compression Test, Bending Test etc. |
| Packaging Details | 300kN 500kN 600kN 1000kN 1500kN 2000kN |
| Standard | Metal Materilas, U and V Notch |
| Certificate | Wooden Box |
| Specification | VTS |
| Origin | 9024109000 |
| Production Capacity | <1000KN |
| Max Load | Pendulum Charpy Impact Testing Machine |
| Testing Machine Mode | OEM |
| Protection Class | 0.5grade |
| Application | <900kg |
| Test Standard | 380V |
| Material | Computer, Digital, Dial |
| Impact Energy |
NDX Series Metal Wire Torsion Testing Machine
1. Application & Features:
1. Main functions
The series of test machine mainly used to test the capacity of bearing deformation of the metal wires and other wire ropes whose diameter are φ1~φ10mm during the reversing. The test can show the surface defects of wire during the test process.
2. Features
3. Main Technical Specifications:
| Specifications Model | NDX-1 | NDX-3 | NDX-10 |
| Specimen diameter (mm) | ?0.3- ?1 | ?1- ?3 | ?3- ?10 |
| Test speed (rev/min) | 60, 180, 300 | 60, 90, 120 | 30, 60 |
| Length of camping wire (mm) | 100- 300 | 300- 500 | |
| Max. counting circle | 999.9 | ||
| Grip hardness (HRC) | 55- 65 | ||
| Work noise (dB) | <70 | ||
| Power supply | 3-phase, AC 380V±10%, 50Hz | ||

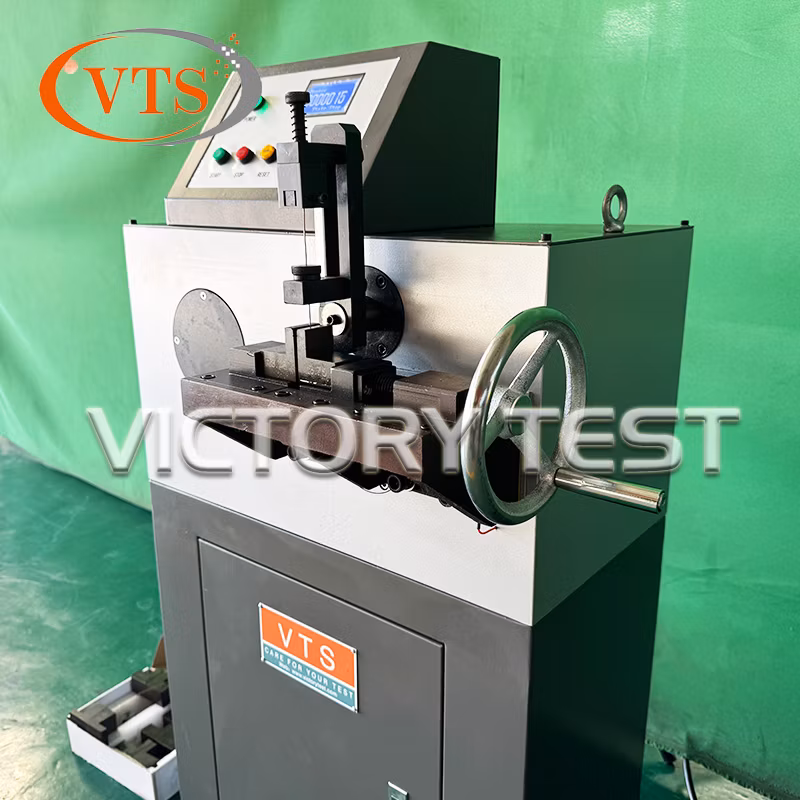

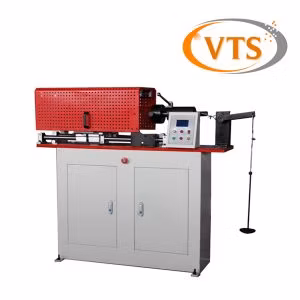

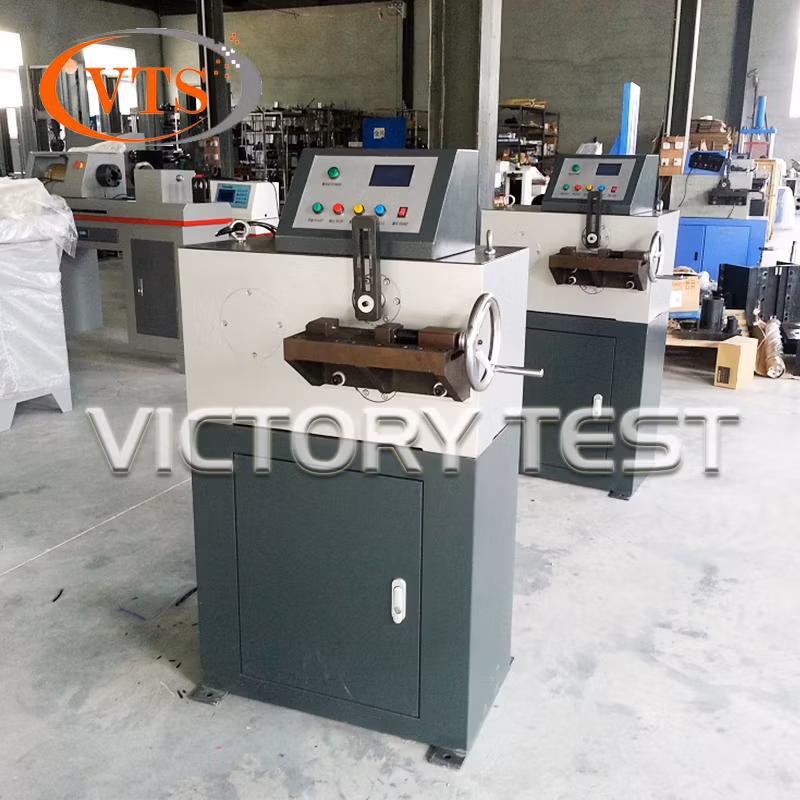

4. Photos for Wire Torsion Testing Machine
Jinan Victory Instrument Co., Ltd (Victory Test - VTS) is a professional manufacturer and exporter of material testing machines and quality control testing equipment in Jinan city, Shandong province, China. Jinan city is the capital of Shandong province, which is located in the northeast of China (about 2 hours away from Beijing and Shanghai.) We are dedicated to offer one stop solution for customers Quality Control of metal materials. With more than 50 staffs & more than 20 years experience, a professional testing solution can be offered quickly.
VTS is an ISO9001 CE certified high-tech enterprises, who focus on designing, researching, making and marketing on metal materials mechanical property testing machines. The testing machines cover most of the testing items, like tensile, compression, bend, torsion, impact, hardness, fatigue, etc. VTS products can meet ISO, ASTM, BS EN, TAPPI, GB, etc testing standards. We have passed CE certificate, VTS products have been exported to more than 60 countries.
As we have more than 20 years experience, an ideal testing solution can be offered quickly based on your testing requirement.
Our Advantages:
As we have more than 20 years experience, an ideal testing solution can be offered quickly based on your testing requirement.
1. Professional manufacturer for more than 20 years
2. Reasonable price with good quality & best delivery time
3. One-Stop solution for material testing machines
4. ISO 9001 SGS CE etc qualified supplier
5. Lifetime technical support and service
Sale period service:
After we get your P.O., the production can be quickly arranged.
For common standard machine, it is in stock.
For customized produced machine, the production time is about 2-4 weeks.
Strictly control of quality, each machine is well inspected before delivery.
After-sales service:
The warranty period is usually one year.
English language operation manual and operation video are offered.
Onsite installation and training service can be offered if its necessary.
