378Product Description
| Model NO. | 50mm |
| Type | 0.5 |
| Load Way | Static Load |
| Display | Computer Control |
| Weight | AC380V |
| Oil Cylinder Position | Tensile Test Compression Test, Bending Test etc. |
| Packaging Details | 300kN 500kN 600kN 1000kN 1500kN 2000kN |
| Standard | Rebar.Steel Bar, Metal, Bolt and Nut, etc |
| Certificate | Plywood Case |
| Specification | VTS |
| Origin | 9024109000 |
| Production Capacity | <1000KN |
| Max Load | Tensile Testing Machine |
| Testing Machine Mode | OEM,Software Reengineering |
| Protection Class | 0.5grade |
| Application | <900kg |
| Test Standard | 380V |
| Material | Computer, Digital, Dial |
| Impact Energy | Plastic Pipe Hydrostatic Pressure and Burst Tester |
| Testing Standard | 10MPa, 16MPa, 25MPa, 3 Stations |
| Testing Pipe | +50PA~ +1500PA |
| Usage |

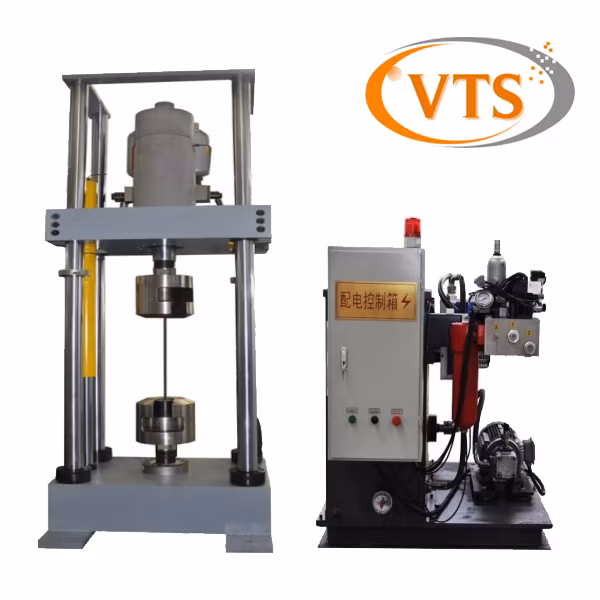

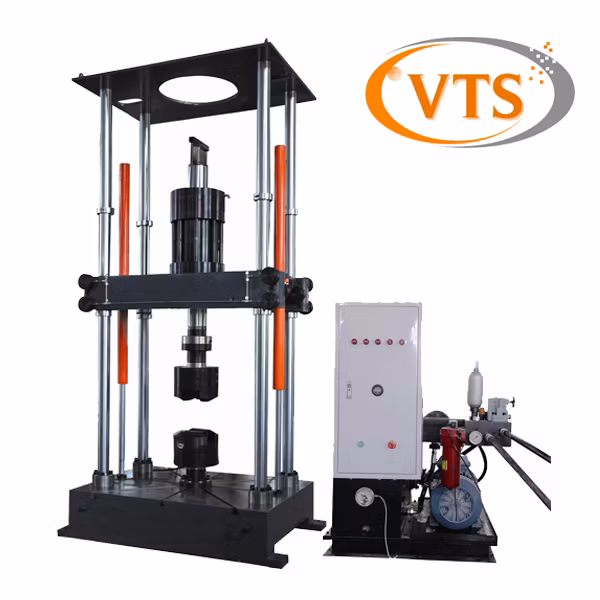

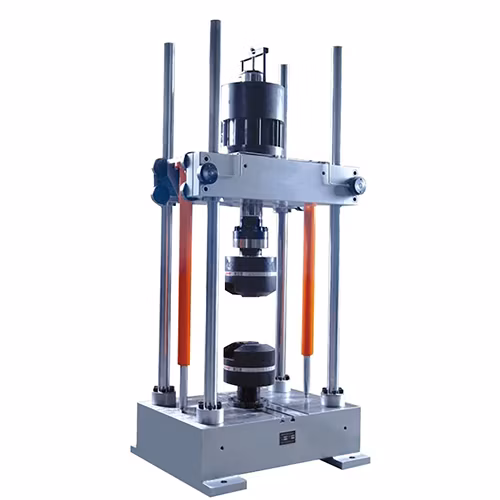

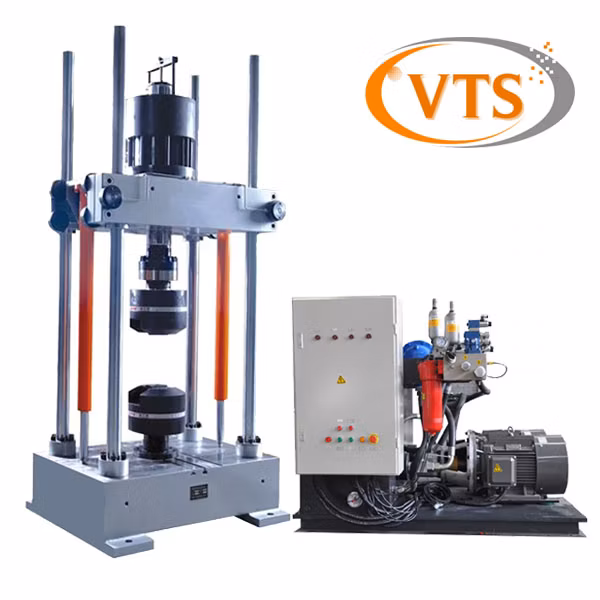

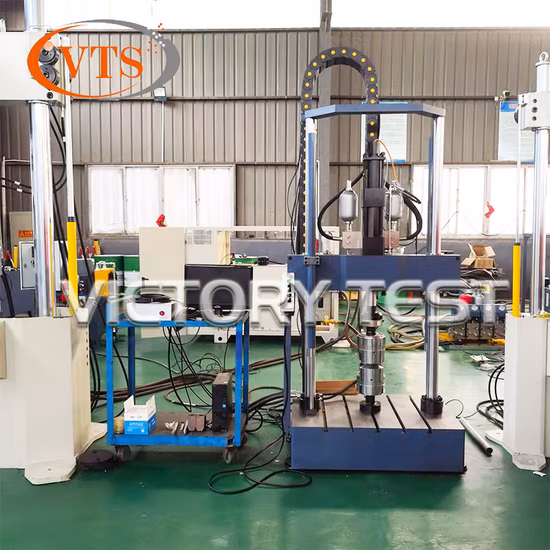

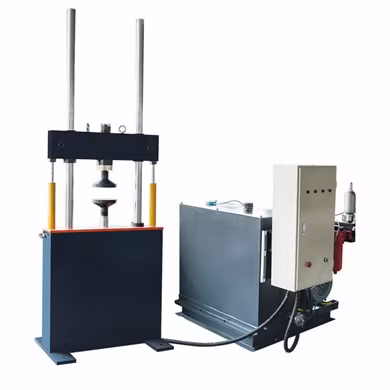

Fatigue Dynamic and Static Universal Testing Machine
3. Main technical parameters: Delve into the robust specifications of our Compact Fatigue Testing Machine, meticulously crafted to cater to diverse testing requirements while housed in a durable plywood case for optimal protection. This machine stands as a testament to engineering excellence, offering reliability and precision in every test conducted.
| Type | PWS- 50 | PWS- 100 | PWS- 250 | PWS- 500 | |
| Maximum testing force kN | static | 50 | 100 | 250 | 500 |
| dynamic | ±35 | ±70 | ±175 | ±350 | |
| Accuracy of testing force | Load | ±0.5% or ±1% from 2%- 100% of F.S. | |||
| Displacement | ±0.5%/1 of F.S. | ||||
| Extension | ±0.5%/1 of F.S. | ||||
| Frequency range (Hz) | 0.01- 50/100 | 0.01- 10/35 | |||
| Amplitude (mm) | ± 75/100/125 | ||||
| Wave forms | Sine wave, Square wave, Triangular wave, etc. | ||||
| Framework forms | Double column with actuator at the bottom | Four column with actuator on the top | |||
| Column spacing (mm) | 600 | 600 | 720 | 850×500 | |
| Testing space (mm) | 600 | 600 | 800 | 1000 | |
| Specimen clamping | Hydraulic clamp | ||||
| Crosshead | Hydraulic lock and test space adjusted by hydraulic elevating actuator | ||||
Jinan Victory Instrument Co., Ltd (Victory Test - VTS) is not just a name but a beacon of innovation and excellence. As a premier manufacturer and exporter of state-of-the-art material testing machines and cutting-edge quality control equipment, we are based in the dynamic city of Jinan, the capital of Shandong province, China. Our strategic location places us just a swift 2-hour journey away from the bustling economic powerhouses of Beijing and Shanghai.Our mission is nothing short of ambitious: to offer an all-encompassing, one-stop-shop for the quality control of metal materials. We pride ourselves on our exceptional team of over 50 dedicated experts, each bringing more than 20 years of industry knowledge to the table. Together, we deliver bespoke testing solutions with unparalleled speed and efficiency, ensuring that your quality control needs are met with precision and professionalism.
VTS is at the forefront of innovation as a high-tech enterprise with ISO9001 and CE certifications, demonstrating our commitment to excellence. We specialize in the design, research, manufacture, and marketing of mechanical property testing machines tailored for metal materials. Our wide-ranging product lineup features machines designed to perform tensile, compression, bending, torsion, impact, hardness, and fatigue tests, all conforming to a plethora of international standards, including ISO, ASTM, BS EN, TAPPI, and GB. With CE-certified products, our reach extends across the globe, proudly serving over 60 countries.
Backed by over 20 years of unparalleled expertise, we provide rapid and customized testing solutions that cater to your unique needs, ensuring accuracy and excellence at every turn.
