500kN Steel Strands High-Performance Fatigue Testing Machine With 500kN Load Capacity

Product Description

Color: Default Color
Size: Default Size
Origin: China
Usage: Default Usage
Type: Default Type
Efficiency: 99.9% Type

Category: Dynamic Fatigue Testing machine

Get Inquiry

Description:

Model NO.	50mm
Type	0.5
Load Way	Static Load
Display	Computer Control
Weight	AC380V
Oil Cylinder Position	Tensile Test Compression Test, Bending Test etc.
Packaging Details	300kN 500kN 600kN 1000kN 1500kN 2000kN
Standard	Rebar.Steel Bar, Metal, Bolt and Nut, etc
Certificate	Plywood Case
Specification	VTS
Origin	9024109000
Production Capacity	150j 300j 450j 600j 750j
Max Load	Pendulum Charpy Impact Testing Machine
Testing Machine Mode	OEM
Protection Class	0.5grade
Application	<900kg
Test Standard	380V
Material	Computer, Digital, Dial
Impact Energy	Plastic Pipe Hydrostatic Pressure and Burst Tester
Testing Standard	10MPa, 16MPa, 25MPa, 3 Stations
Testing Pipe	+50PA~ +1500PA
Usage

Product Description

Fatigue Dynamic and Static Universal Testing Machine

1. Application
The PWS series electric-hydraulic servo dynamic & static universal testing machine is a powerhouse of innovation, meticulously designed for comprehensive static and dynamic mechanics performance testing of both materials and parts. With its versatile capability, and when paired with the appropriate clamps, it seamlessly conducts a wide range of mechanical tests-be it on tension, compression, low cycle and high cycle fatigue, crack growth, and more. Its exceptional performance has made it an indispensable tool for critical industries, including aerospace, maritime, and defense sectors.

2. Product features
Our cutting-edge machine employs an internationally advanced dynamic electric-hydraulic servo test system, ensuring precision and excellence. Its integrated with the state-of-the-art unitization, BTW (Basic Test Ware) software, and MPT (Multipurpose Test Ware) software, offering a seamless testing experience. The design emphasizes standardization and modularization, significantly enhancing the systems stability and reliability. Every key component is crafted using todays most sophisticated international technologies, ensuring superior performance and dependability.

3. Main Technical Parameters: Discover the unmatched precision of our High-Performance Fatigue Testing Machine, engineered to deliver a robust testing experience with a formidable 500kN load capacity. This cutting-edge equipment is designed to ensure accuracy, reliability, and efficiency, making it an indispensable tool for rigorous testing demands. Experience state-of-the-art technology that guarantees superior performance and outstanding results in all your fatigue testing applications.

Type		PWS- 50	PWS- 100	PWS- 250	PWS- 500
Maximum testing force kN	static	50	100	250	500
	dynamic	±35	±70	±175	±350
Accuracy of testing force	Load	±0.5% or ±1% from 2%- 100% of F.S.
	Displacement	±0.5%/1 of F.S.
	Extension	±0.5%/1 of F.S.
Frequency range (Hz)		0.01- 50/100			0.01- 10/35
Amplitude (mm)		± 75/100/125
Wave forms		Sine wave, Square wave, Triangular wave, etc.

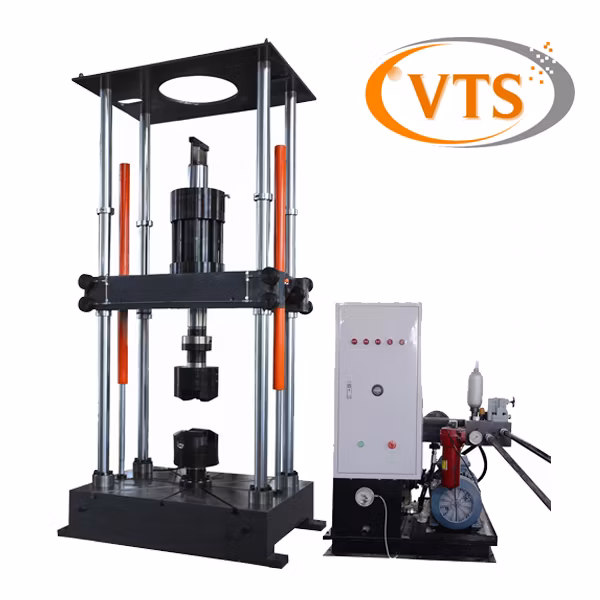

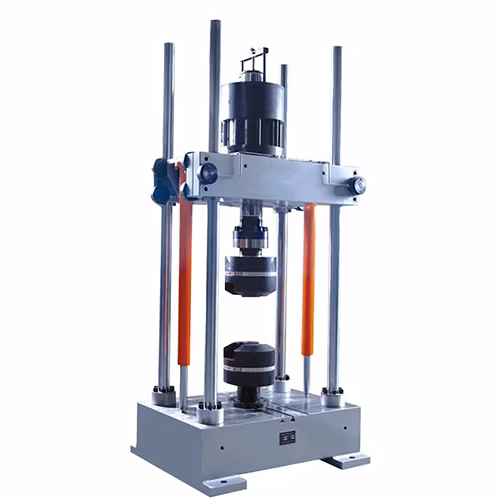

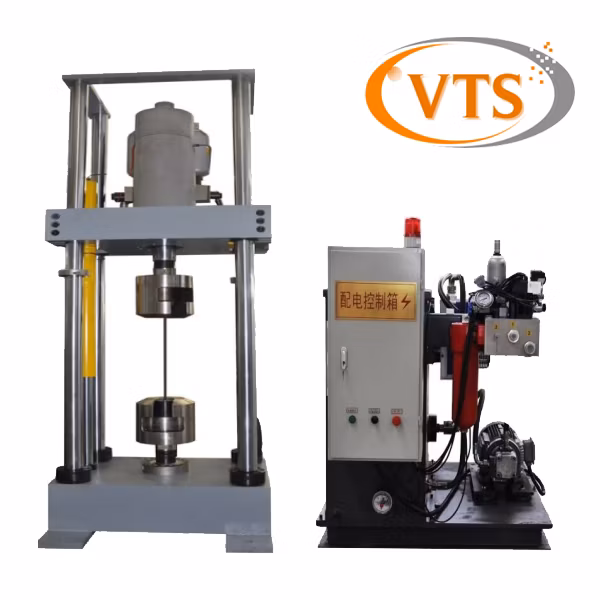

Framework forms		Double column with actuator at the bottom			Four column with actuator on the top
Column spacing (mm)		600	600	720	850×500
Testing space (mm)		600	600	800	1000
Specimen clamping		Hydraulic clamp
Crosshead		Hydraulic lock and test space adjusted by hydraulic elevating actuator

Jinan Victory Instrument Co., Ltd (Victory Test - VTS) is a trailblazer in the realm of material testing machines and quality control equipment. Situated in the vibrant heart of Jinan, the capital city of Shandong province, China, our strategic location offers convenient access just 2 hours from the dynamic metropolises of Beijing and Shanghai. As a leading manufacturer and exporter, we are committed to driving innovation and excellence in our industry.Our mission is to deliver a holistic, one-stop solution for the quality control of metal materials. With the backing of a dedicated team of over 50 seasoned experts and more than two decades of industry mastery, we provide professional testing solutions with unrivaled speed and efficiency, ensuring that each product meets stringent quality standards.

VTS is a pioneering ISO9001 and CE certified high-tech enterprise, excelling in the design, research, manufacture, and marketing of mechanical property testing machines tailored for metal materials. Our extensive product range encompasses machines for tensile, compression, bending, torsion, impact, hardness, and fatigue testing, all aligning with a wide array of international standards such as ISO, ASTM, BS EN, TAPPI, and GB. Our CE-certified products have a remarkable global presence, reaching over 60 countries and setting benchmarks in quality and reliability.

With over 20 years of profound expertise, we offer rapid and bespoke testing solutions crafted to fulfill your specific requirements, ensuring unparalleled excellence and precision at every stage of your testing journey.

Our Advantages:
With an impressive legacy spanning over 20 years, we proudly offer swift and highly accurate testing solutions, meticulously crafted to meet your unique specifications.
1. Boasting over two decades of excellence as a distinguished professional manufacturer.
2. We blend competitive pricing with exceptional quality and ensure swift delivery times, setting us apart in the industry.
3. Providing comprehensive, one-stop solutions to cater to all your material testing machine requirements.
4. As a certified supplier, we proudly hold ISO 9001, SGS, CE, and other esteemed accreditation, underscoring our commitment to quality.
5. Enjoy lifetime technical support and service, ensuring your product remains in peak condition throughout its lifespan.

Sale period service:
Once your purchase order is received, we promptly initiate our production schedule, prioritizing both efficiency and speed to meet your needs.
For universally standard machines, we maintain an extensive inventory, ready to fulfill your immediate requirements.
Our customized machines are crafted with unparalleled precision, typically within a dedicated production window of 2-4 weeks, just for you.
Our stringent quality control measures guarantee that each machine undergoes meticulous inspection prior to delivery, ensuring optimal performance.

After-sales service:
Our comprehensive warranty covers an entire year, granting you peace of mind and unmatched assurance with your purchase.
We provide detailed English language operation manuals and instructional videos to ensure you experience effortless ease of use.
Offering onsite installation and training services as needed, we ensure a seamless integration and operation experience for you.
