50kN Steel Strands Fatigue Testing Machine

Product Description

Color: Default Color
Size: Default Size
Origin: China
Usage: Default Usage
Type: Default Type
Efficiency: 99.9% Type

Category: Dynamic Fatigue Testing machine

Get Inquiry

Description:

Model NO.	50mm
Type	0.5
Load Way	Static Load
Display	Computer Control
Weight	AC380V
Oil Cylinder Position	Tensile Test Compression Test, Bending Test etc.
Packaging Details	300kN 500kN 600kN 1000kN 1500kN 2000kN
Standard	Rebar.Steel Bar, Metal, Bolt and Nut, etc
Certificate	Plywood Case
Specification	VTS
Origin	9024109000
Production Capacity	150j 300j 450j 600j 750j
Max Load	Pendulum Charpy Impact Testing Machine
Testing Machine Mode	OEM
Protection Class	0.5grade
Application	<900kg
Test Standard	380V
Material	Computer, Digital, Dial
Impact Energy	Plastic Pipe Hydrostatic Pressure and Burst Tester
Testing Standard	10MPa, 16MPa, 25MPa, 3 Stations
Testing Pipe	+50PA~ +1500PA
Usage

Product Description

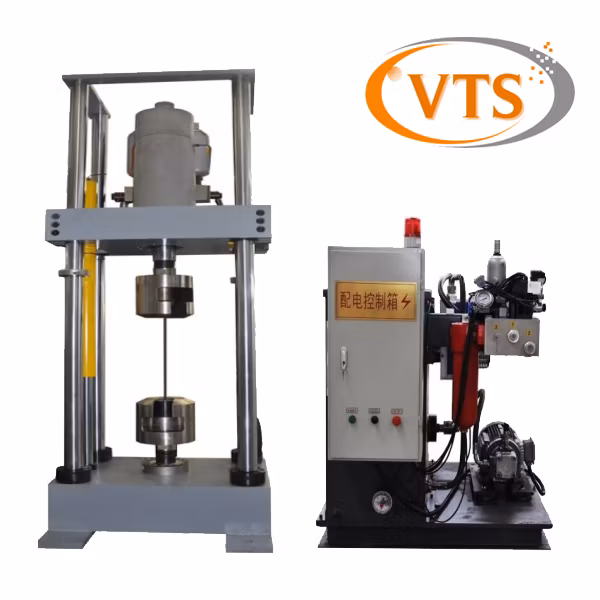

Fatigue Dynamic and Static Universal Testing Machine

1. Application
The PWS series electric-hydraulic servo dynamic & static universal testing machine stands as a pinnacle of innovation, crafted for rigorous testing of both static and dynamic mechanical properties of diverse materials and parts. With its adaptable design, it readily accommodates various clamps to facilitate a broad spectrum of mechanics testing, including tension, compression, low and high cycle fatigue, crack growth, and more. This versatile machine is indispensable in high-stakes industries such as aerospace, maritime engineering, and defense, where precision and reliability are paramount.

2. Product features
Harnessing the power of cutting-edge technology, this machine integrates an internationally acclaimed dynamic electric-hydraulic servo test system. It features a modularized and standardized design, empowered by the sophisticated BTW (Basic Test Ware) and MPT (Multipurpose Test Ware) software. These advancements ensure exceptional stability and reliability. The core elements and components of the system are crafted using the latest international technological advancements, guaranteeing superior performance and longevity.

3. Main Technical Parameters

Type		PWS- 50	PWS- 100	PWS- 250	PWS- 500
Maximum testing force kN	static	50	100	250	500
	dynamic	±35	±70	±175	±350
Accuracy of testing force	Load	±0.5% or ±1% from 2%- 100% of F.S.
	Displacement	±0.5%/1 of F.S.
	Extension	±0.5%/1 of F.S.
Frequency range (Hz)		0.01- 50/100			0.01- 10/35
Amplitude (mm)		± 75/100/125
Wave forms		Sine wave, Square wave, Triangular wave, etc.

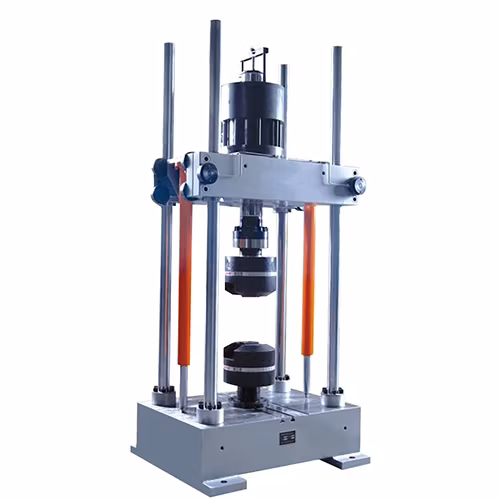

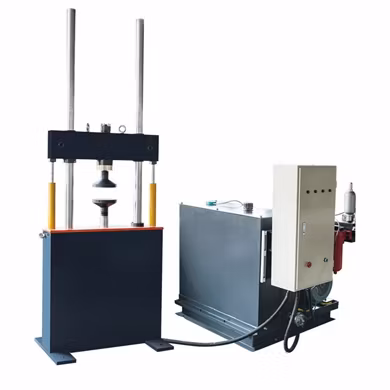

Framework forms		Double column with actuator at the bottom			Four column with actuator on the top
Column spacing (mm)		600	600	720	850×500
Testing space (mm)		600	600	800	1000
Specimen clamping		Hydraulic clamp
Crosshead		Hydraulic lock and test space adjusted by hydraulic elevating actuator

Welcome to the helm of innovation and quality excellence with Jinan Victory Instrument Co., Ltd (Victory Test - VTS). As a beacon of progress, we are distinguished as a premier manufacturer and exporter of top-tier material testing machines and superior quality control equipment. Nestled in the dynamic city of Jinan, the capital of Shandong province, China, our strategic location places us just a quick 2-hour journey from the thriving metropolises of Beijing and Shanghai.Our unwavering mission is to deliver an all-encompassing, one-stop solution for the meticulous quality control of metal materials. Our dedicated team of over 50 industry experts, fortified by more than two decades of invaluable experience, is committed to providing exceptional testing solutions with unparalleled speed and efficiency.

At VTS, we shine as a pioneering ISO9001 and CE certified high-tech enterprise, excelling in the innovative design, advanced research, precision manufacturing, and strategic marketing of mechanical property testing machines tailored for metal materials. Our extensive product catalog showcases an array of cutting-edge machines for tensile, compression, bending, torsion, impact, hardness, and fatigue testing, all crafted to conform to an extensive suite of international standards including ISO, ASTM, BS EN, TAPPI, and GB. Our CE-certified innovations boast a remarkable global presence, reaching discerning customers across more than 60 countries.

Leveraging over 20 years of industry mastery, we are dedicated to delivering rapid and customized testing solutions that cater precisely to your unique needs, ensuring the utmost in excellence and precision at every stage.

Our Advantages:
Backed by a legacy of over 20 years, we are your trusted partners in delivering rapid and precise testing solutions, perfectly aligned with your unique specifications.
1. With a proud legacy spanning more than two decades, we stand as a distinguished leader in professional manufacturing.
2. Enjoy competitive pricing that doesnt compromise on quality, alongside swift delivery times that exceed expectations.
3. We offer a comprehensive, one-stop solution to cater to every aspect of your material testing machine requirements.
4. As a certified supplier, we boast prestigious qualifications including ISO 9001, SGS, CE, and more, ensuring our commitment to excellence.
5. Benefit from our lifelong technical support and service, dedicated to ensuring the longevity and performance of your product.

Sale period service:
Once your purchase order is confirmed, we spring into action with a prompt production schedule, focusing on efficiency and speed to deliver results.
For universally standard machines, our ready inventory ensures we meet your immediate demands without delay.
Our customized machines are crafted with exceptional precision, typically ready within a focused production window of 2-4 weeks.
We uphold rigorous quality control standards, guaranteeing that each machine undergoes meticulous inspection prior to delivery.

After-sales service:
Enjoy our comprehensive warranty, extending a full year, and experience unparalleled peace of mind and assurance.
To facilitate ease of use, we provide comprehensive operation manuals in English and instructional videos readily available for your convenience.
We offer onsite installation and training services tailored to your needs, ensuring seamless integration and effortless operation.
