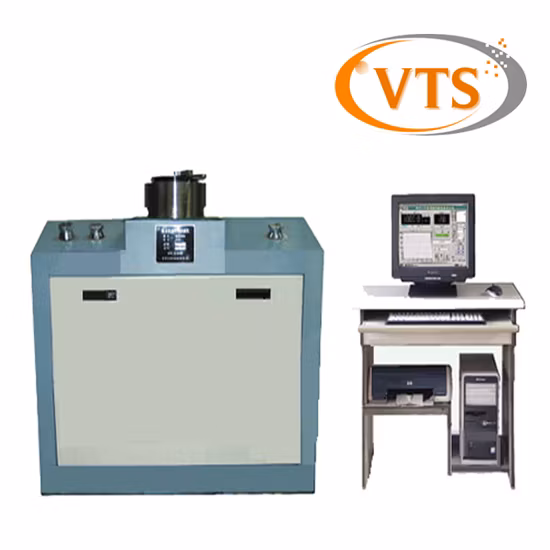

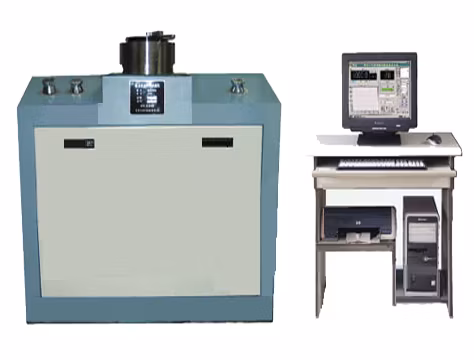

Cupping Testing Machine with 300kN Load Capacity and Plywood Case
Available
378Product Description Erichsen Cupping Testing Machine
| Model NO. | 50mm |
| Type | 0.5 |
| Load Way | Static Load |
| Display | Computer Control |
| Weight | AC380V |
| Oil Cylinder Position | Tensile Test Compression Test, Bending Test etc. |
| Packaging Details | 300kN 500kN 600kN 1000kN 1500kN 2000kN |
| Standard | Rebar.Steel Bar, Metal, Bolt and Nut, etc |
| Certificate | Plywood Case |
| Specification | VTS |
| Origin | 9024109000 |
| Production Capacity | 150j 300j 450j 600j 750j |
| Max Load | Pendulum Charpy Impact Testing Machine |
| Testing Machine Mode | OEM |
| Protection Class | 0.5grade |
| Application | <900kg |
| Test Standard | 380V |
| Material | Computer, Digital, Dial |
| Impact Energy | Plastic Pipe Hydrostatic Pressure and Burst Tester |
| Testing Standard | 10MPa, 16MPa, 25MPa, 3 Stations |
| Testing Pipe | +50PA~ +1500PA |
| Usage |

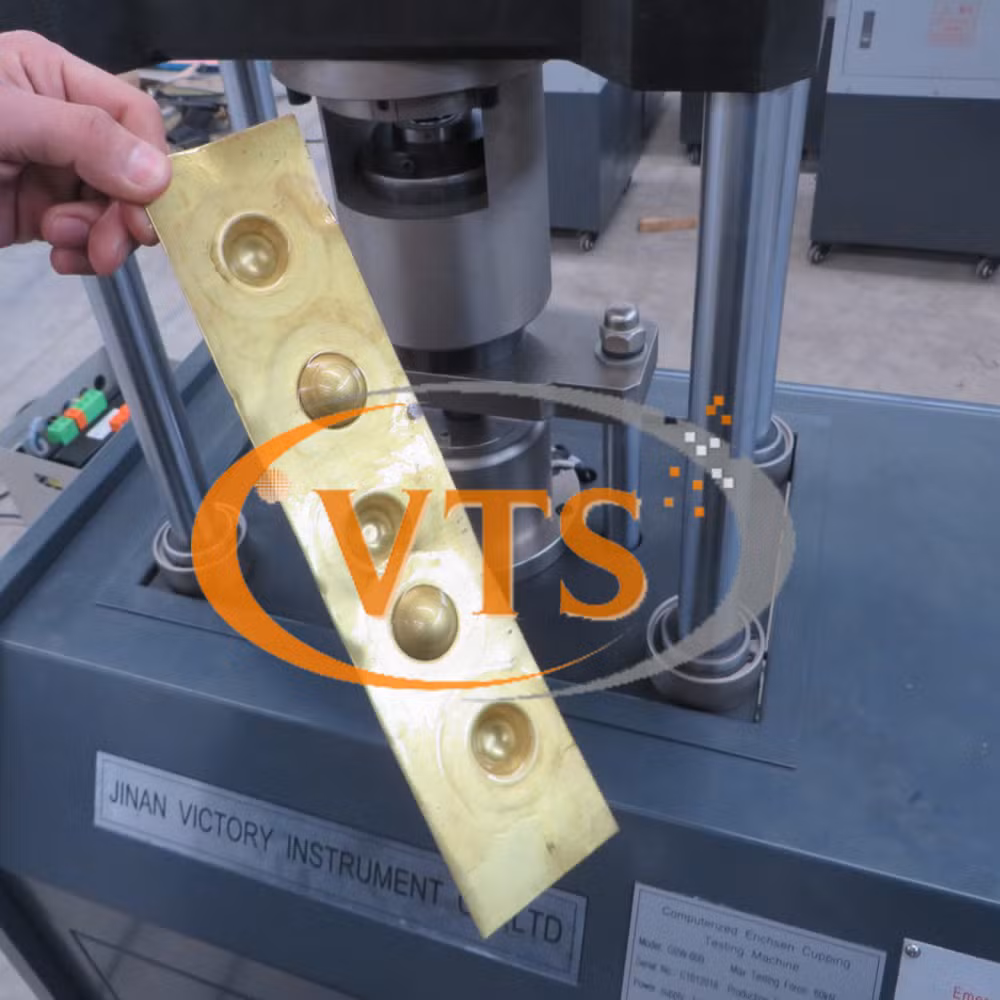

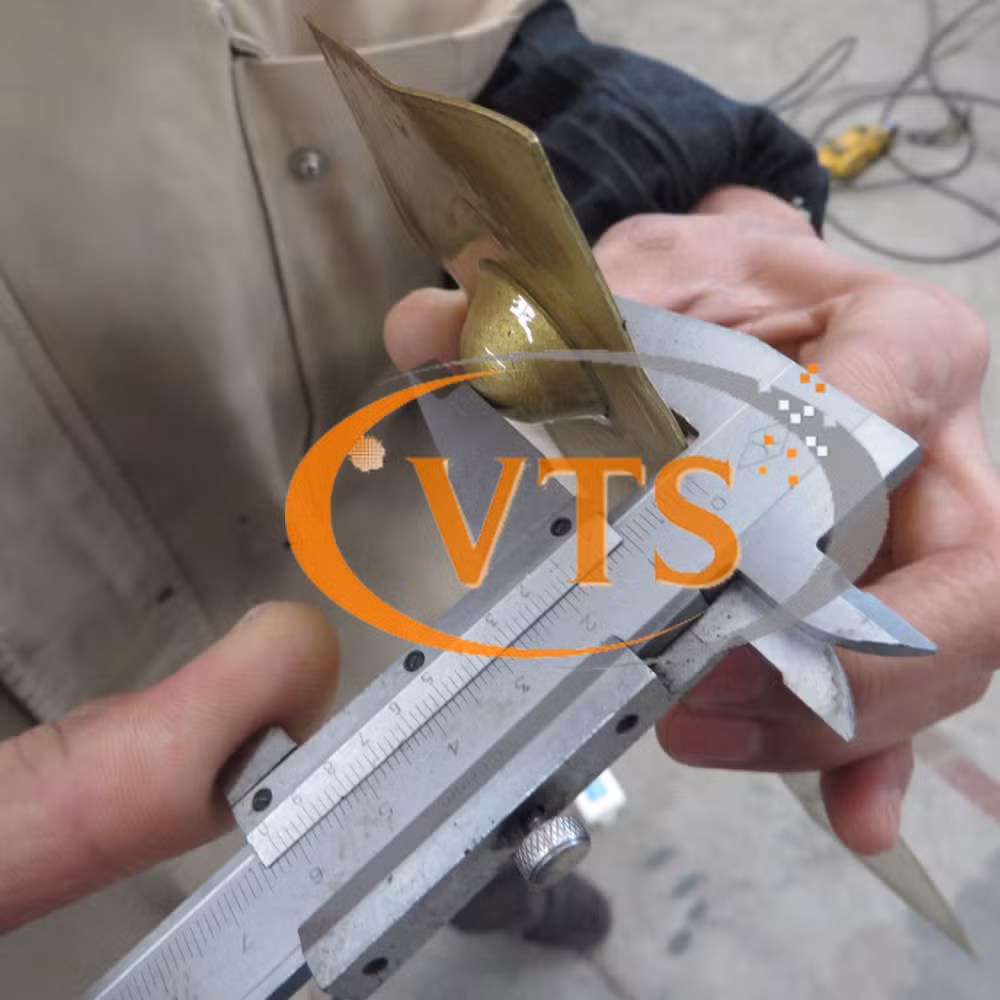

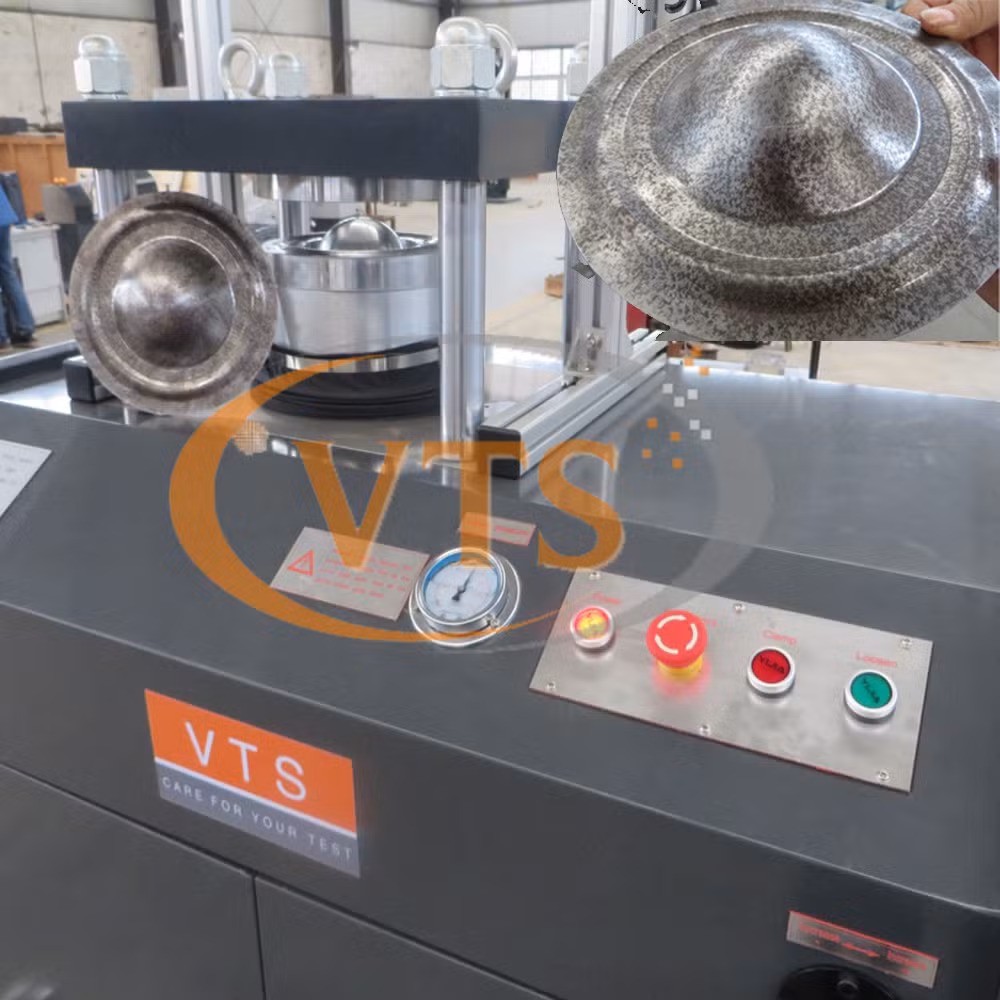

Erichsen Cupping Testing Machine
2. Main technical parameters
| Model | GBW-60B | |
| Thickness of Sheet metal specimen | Standard Cupping Test 0.2-2mm | |
| Max Width of Sheet metal specimen | 100mm (≥90mm) | |
| Max. Punching force/Max Drawing force | 60kN | |
| Blank holder force | 10kN | |
| Max of Drawing punch stroke | 60mm | |
| Cupping Tools for Specimen Thickness: 0.2-2.0mm | Standard punch ball (Spherical punch Dia.) | 20mm |
| Standard pattern hole (Blankholder Dia.) | 33mm | |
| Standard fixed pattern hole(Inner Die Dia.) | 27mm | |
| Resolution of Erichsen cupping value | 0.01mm | |
| Testing speed | 1-60mm/min | |
| Display Contents | Clamping Force, Punching Force, Displacement, Cupping Value and Velocity | |
| Control Mode | Manual Velocity Adjustment, Automatic Judgment and Recording of Cupping Value | |
| Power supply | Three phase 380V, 50Hz or specified by users | |
Jinan Victory Instrument Co., Ltd (Victory Test - VTS) stands as a beacon of excellence, specializing in the manufacturing and exporting of superior material testing machines and quality control equipment. Nestled in the vibrant city of Jinan, the capital of Shandong province, China, VTS is strategically positioned just two hours from the bustling hubs of Beijing and Shanghai. Our unwavering dedication to providing comprehensive Quality Control solutions for metal materials is evident through our seasoned team of over 50 skilled professionals, backed by two decades of industry experience, ensuring speedy delivery of tailored testing solutions.
VTS takes pride in being an ISO9001 and CE certified high-tech enterprise, focusing on the design, research, production, and marketing of mechanical property testing machines for metal materials. Our versatile machines address a myriad of testing needs, such as tensile, compression, bending, torsion, impact, hardness, and fatigue, all in line with ISO, ASTM, BS EN, TAPPI, and GB standards. Our CE-certified products enjoy a global presence, reaching over 60 countries.
With our extensive 20-year legacy, we swiftly deliver the perfect testing solution tailored to your unique requirements, cementing our status as industry leaders.
