377Product Description Erichsen Cupping Testing Machine
| Model NO. | 50mm |
| Type | 0.5 |
| Load Way | Static Load |
| Display | Computer Control |
| Weight | AC380V |
| Oil Cylinder Position | Tensile Test Compression Test, Bending Test etc. |
| Packaging Details | 300kN 500kN 600kN 1000kN 1500kN 2000kN |
| Standard | Rebar.Steel Bar, Metal, Bolt and Nut, etc |
| Certificate | Plywood Case |
| Specification | VTS |
| Origin | 9024109000 |
| Production Capacity | 150j 300j 450j 600j 750j |
| Max Load | Pendulum Charpy Impact Testing Machine |
| Testing Machine Mode | OEM |
| Protection Class | 0.5grade |
| Application | <900kg |
| Test Standard | 380V |
| Material | Computer, Digital, Dial |
| Impact Energy | Plastic Pipe Hydrostatic Pressure and Burst Tester |
| Testing Standard | 10MPa, 16MPa, 25MPa, 3 Stations |
| Testing Pipe | +50PA~ +1500PA |
| Usage |

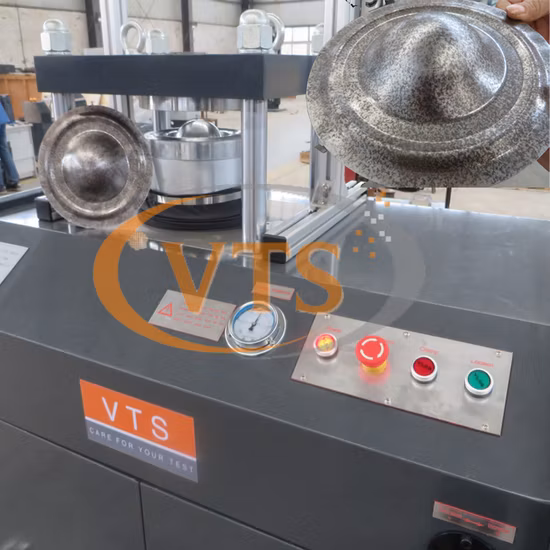

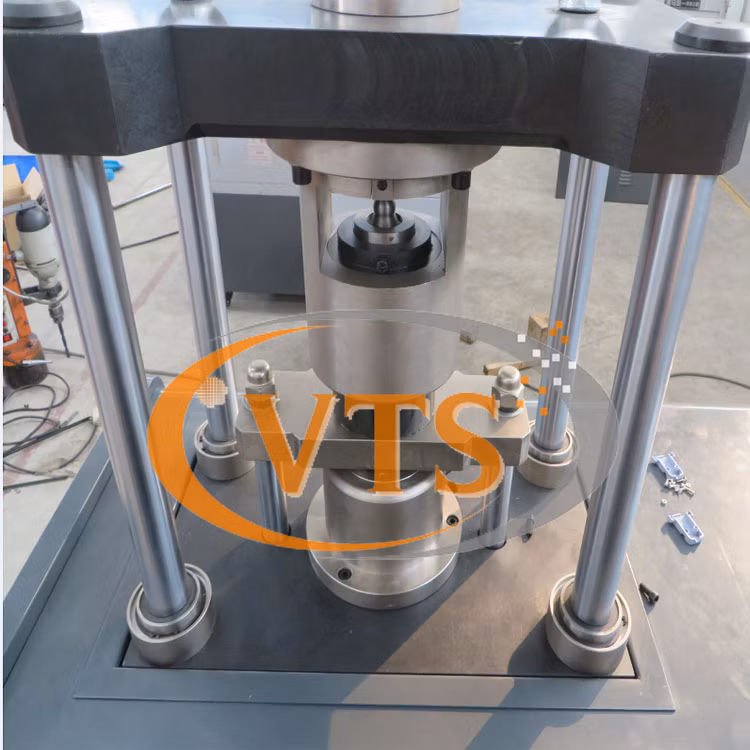

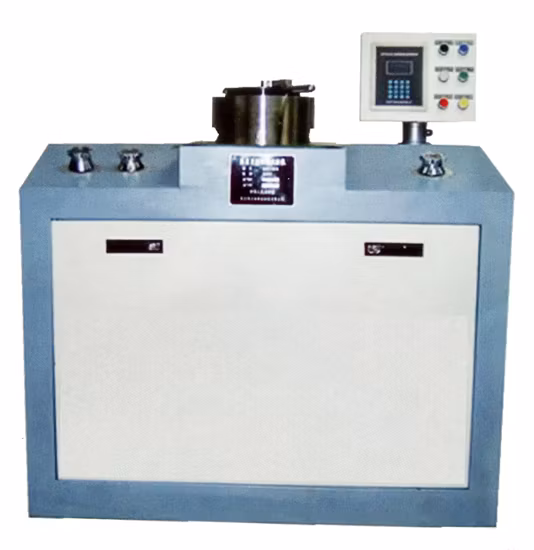

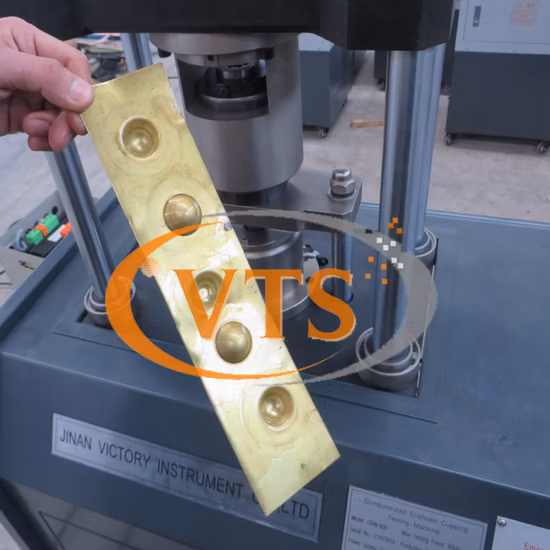

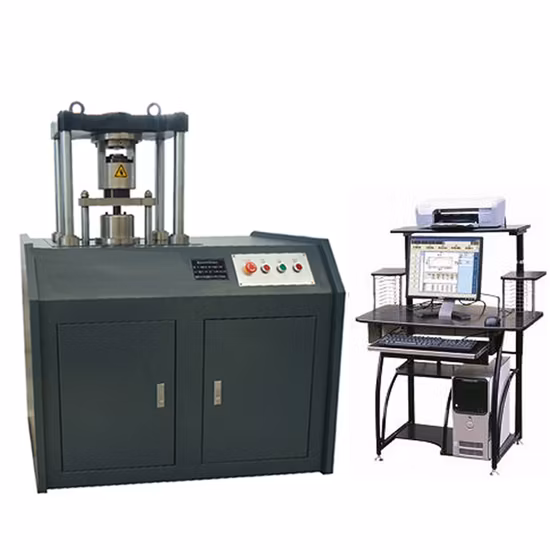

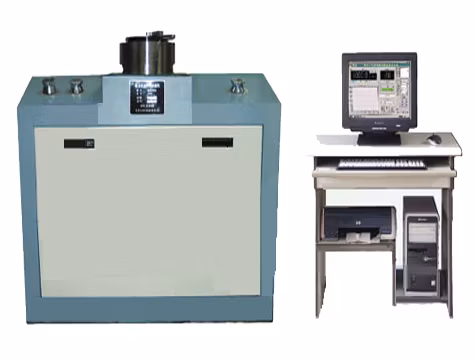

Erichsen Cupping Testing Machine
2. Main technical parameters
| Model | GBW-60B | |
| Thickness of Sheet metal specimen | Standard Cupping Test 0.2-2mm | |
| Max Width of Sheet metal specimen | 100mm (≥90mm) | |
| Max. Punching force/Max Drawing force | 60kN | |
| Blank holder force | 10kN | |
| Max of Drawing punch stroke | 60mm | |
| Cupping Tools for Specimen Thickness: 0.2-2.0mm | Standard punch ball (Spherical punch Dia.) | 20mm |
| Standard pattern hole (Blankholder Dia.) | 33mm | |
| Standard fixed pattern hole(Inner Die Dia.) | 27mm | |

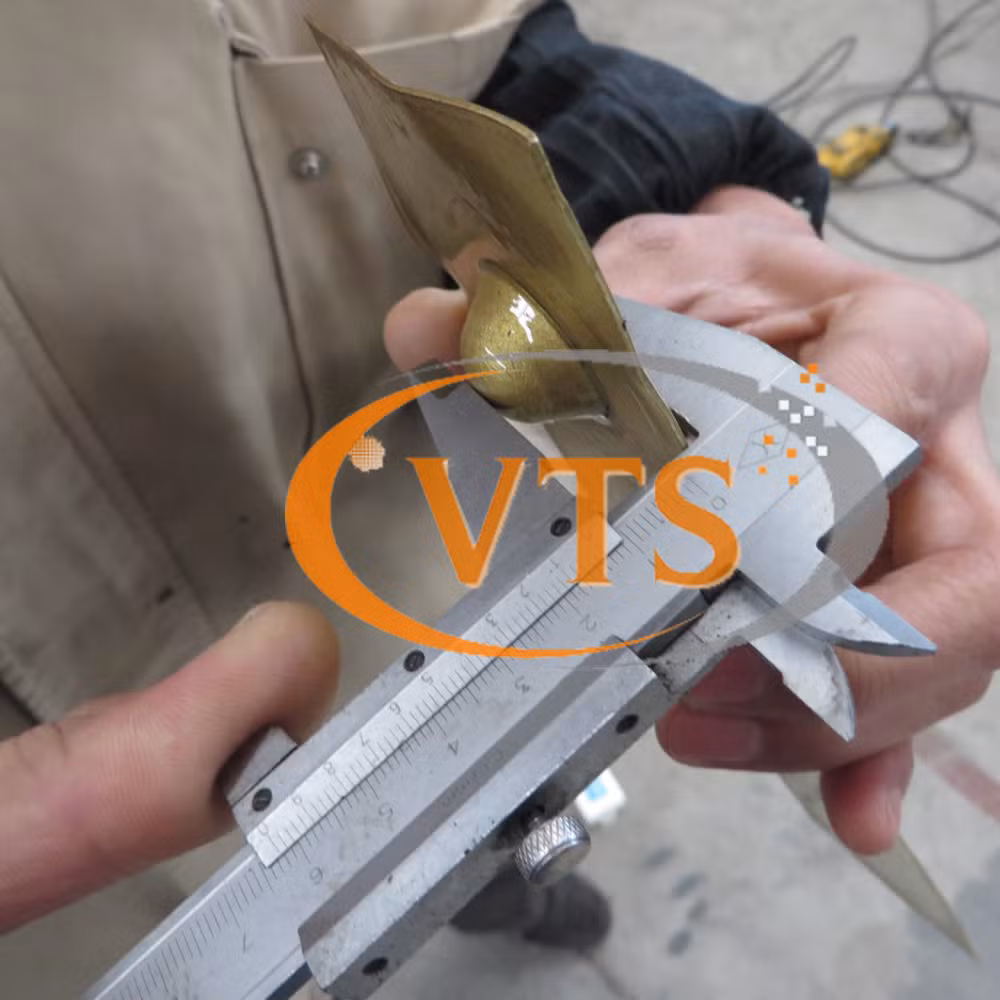

| Resolution of Erichsen cupping value | 0.01mm | |
| Testing speed | 1-60mm/min | |
| Display Contents | Clamping Force, Punching Force, Displacement, Cupping Value and Velocity | |
| Control Mode | Manual Velocity Adjustment, Automatic Judgment and Recording of Cupping Value | |
| Power supply | Three phase 380V, 50Hz or specified by users | |
Jinan Victory Instrument Co., Ltd (Victory Test - VTS) stands at the forefront of innovation as a leading manufacturer and exporter of material testing machines and quality control equipment. Based in the vibrant city of Jinan, the capital of Shandong province, China, we are strategically positioned about 2 hours from the bustling hubs of Beijing and Shanghai. Our mission is to provide a comprehensive, one-stop solution for quality control of metal materials. With a dedicated team of over 50 experts and more than 20 years of industry experience, we deliver professional testing solutions with unmatched speed and efficiency.
VTS is a cutting-edge ISO9001 and CE certified high-tech enterprise, specializing in the design, research, manufacture, and marketing of mechanical property testing machines for metal materials. Our diverse product range includes machines for tensile, compression, bending, torsion, impact, hardness, and fatigue testing, meeting a myriad of international standards such as ISO, ASTM, BS EN, TAPPI, and GB. Our CE-certified products have a global footprint, reaching over 60 countries.
With over 20 years of expertise, we provide swift and tailored testing solutions to meet your specific requirements, ensuring excellence and precision in every aspect.
