High-Capacity Dynamic Testing Machine With Plywood Case Packaging

Product Description

Color: Default Color
Size: Default Size
Origin: China
Usage: Default Usage
Type: Default Type
Efficiency: 99.9% Type

Category: Dynamic Fatigue Testing machine

Get Inquiry

Description:

Model NO.	50mm
Type	0.5
Load Way	Static Load
Display	Computer Control
Weight	AC380V
Oil Cylinder Position	Tensile Test Compression Test, Bending Test etc.
Packaging Details	300kN 500kN 600kN 1000kN 1500kN 2000kN
Standard	Rebar.Steel Bar, Metal, Bolt and Nut, etc
Certificate	Plywood Case
Specification	VTS
Origin	9024109000
Production Capacity	<1000KN
Max Load	Tensile Testing Machine
Testing Machine Mode	OEM,Software Reengineering
Protection Class	0.5grade
Application	<900kg
Test Standard	380V
Material	Computer, Digital, Dial
Impact Energy	Plastic Pipe Hydrostatic Pressure and Burst Tester
Testing Standard	10MPa, 16MPa, 25MPa, 3 Stations
Testing Pipe	+50PA~ +1500PA
Usage

Product Description

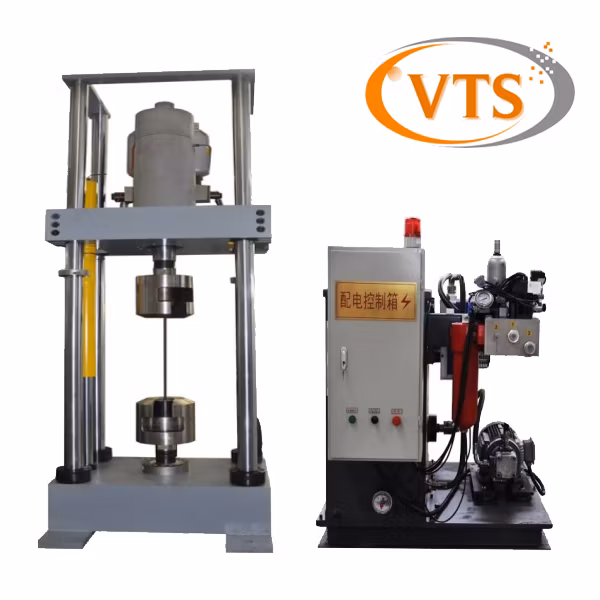

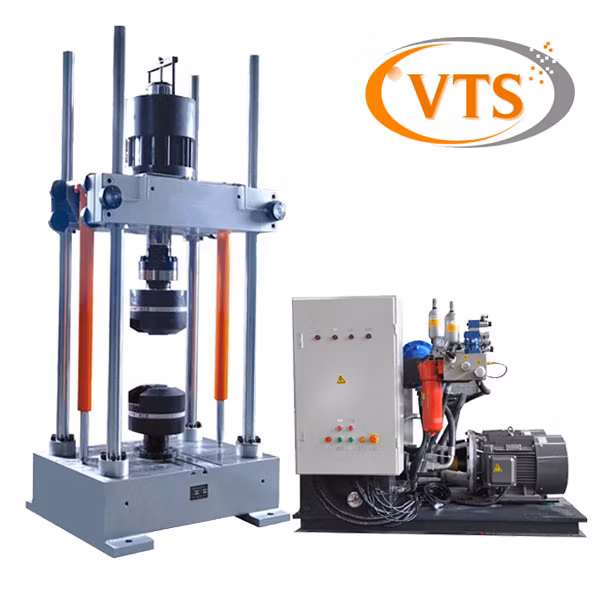

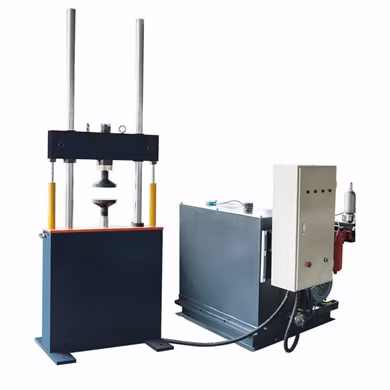

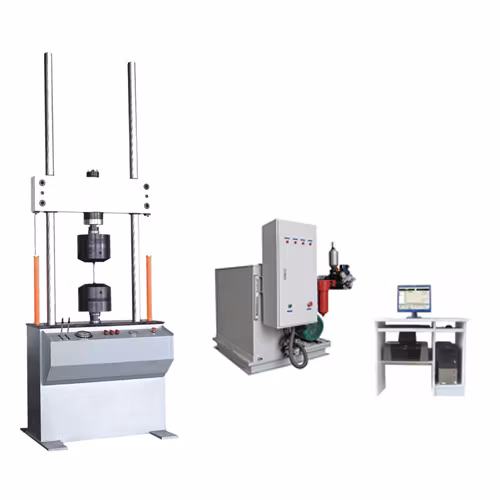

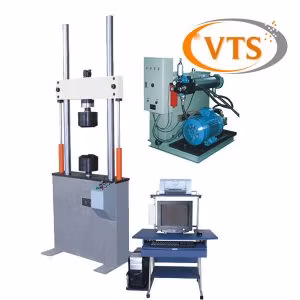

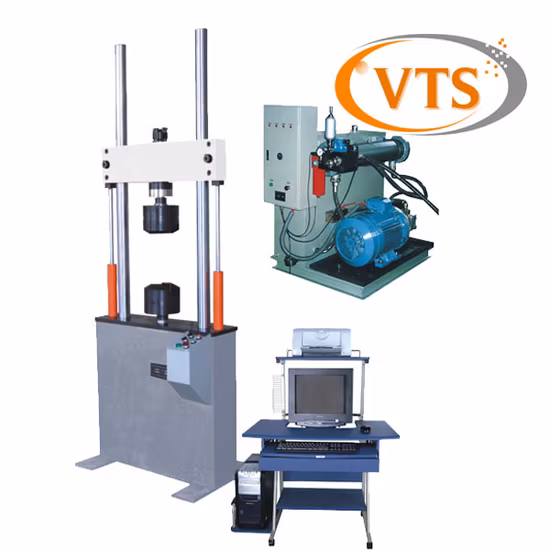

PWS Series Electric-hydraulic Servo Dynamic& Static Universal Testing Machine

1. Application
The PWS series electric-hydraulic servo dynamic & static universal testing machine is an indispensable tool for conducting comprehensive static and dynamic mechanical performance evaluations of both materials and components. By integrating specialized clamps, this versatile machine excels in measuring mechanical properties such as tension, compression, low and high cycle fatigue, and crack propagation. Its unrivaled capabilities make it a cornerstone in sectors including aerospace, maritime, and defense industries, offering precise and reliable testing solutions.

2. Product features
This innovative testing machine features a cutting-edge international dynamic electric-hydraulic servo test system, complemented by the sophisticated BTW (Basic Test Ware) and MPT (Multipurpose Test Ware) software packages. By embracing standardized, modular design principles, the system achieves unparalleled stability and reliability. Key elements and components are crafted with state-of-the-art international technology, ensuring exceptional performance and durability.

3. Main Technical Parameters: Discover the powerful capabilities and cutting-edge specifications of our High-Capacity Dynamic Testing Machine, all meticulously engineered and designed to elevate your experience. Enclosed in a robust Plywood Case, this machine is ready to deliver unparalleled performance across a multitude of testing environments. Immerse yourself in the technical superiority and reliability that only Jinan Victory Instrument Co., Ltd. can offer. Learn more about how our technical prowess can benefit your operations today!

Type		PWS- 50	PWS- 100	PWS- 250	PWS- 500
Maximum testing force kN	static	50	100	250	500
	dynamic	±35	±70	±175	±350
Accuracy of testing force	Load	±0.5% or ±1% from 2%- 100% of F.S.
	Displacement	±0.5%/1 of F.S.
	Extension	±0.5%/1 of F.S.
Frequency range (Hz)		0.01- 50/100			0.01- 10/35
Amplitude (mm)		± 75/100/125
Wave forms		Sine wave, Square wave, Triangular wave, etc.

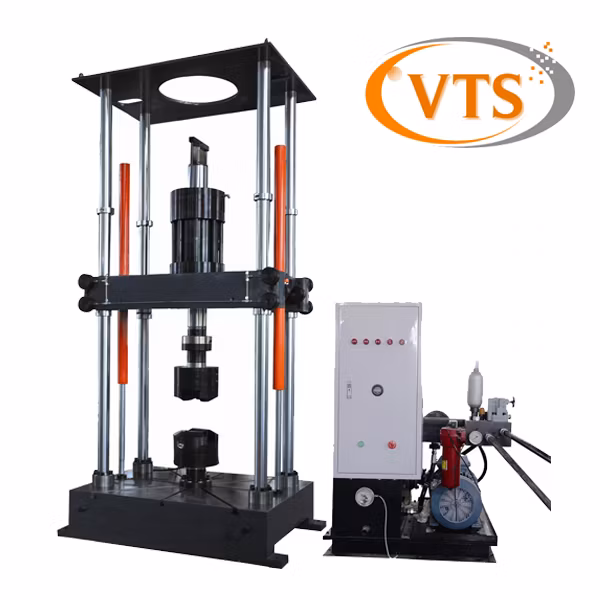

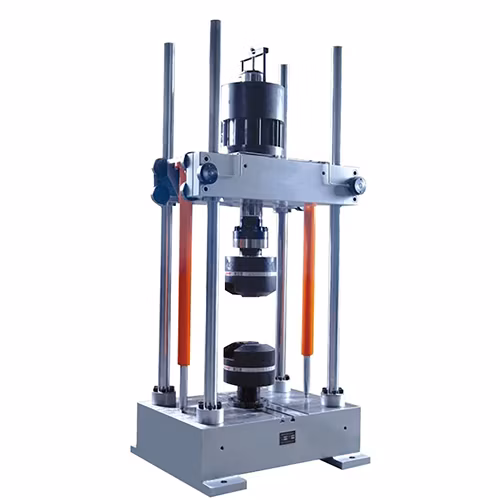

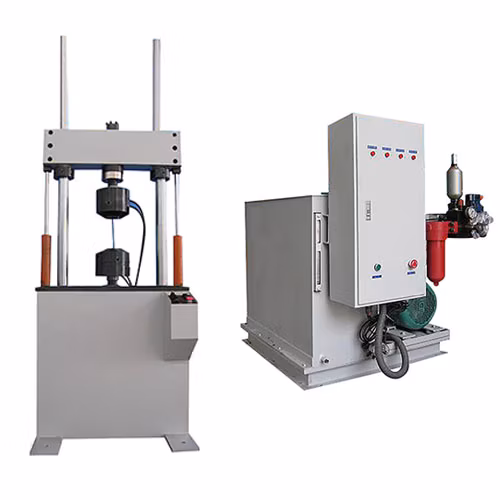

Framework forms		Double column with actuator at the bottom			Four column with actuator on the top
Column spacing (mm)		600	600	720	850×500
Testing space (mm)		600	600	800	1000
Specimen clamping		Hydraulic clamp
Crosshead		Hydraulic lock and test space adjusted by hydraulic elevating actuator

Jinan Victory Instrument Co., Ltd (Victory Test - VTS) is a beacon of innovation, standing proudly as a premier manufacturer and exporter of material testing machines and quality control equipment. Nestled in the dynamic city of Jinan, the vibrant capital of Shandong province, China, our strategic location places us a mere 2-hour journey from the bustling metropolises of Beijing and Shanghai.Our mission is clear: to offer an all-encompassing, one-stop solution for quality control of metal materials. Boasting a dedicated team of over 50 seasoned experts and armed with over 20 years of industry experience, we provide professional testing solutions delivered with unparalleled speed and efficiency.

VTS is at the forefront of innovation as a cutting-edge ISO9001 and CE certified high-tech enterprise. We specialize in the design, research, manufacture, and marketing of mechanical property testing machines for metal materials. Our extensive product range is designed to cover tensile, compression, bending, torsion, impact, hardness, and fatigue testing, adhering to numerous international standards like ISO, ASTM, BS EN, TAPPI, and GB. Proudly CE-certified, our products have made their mark in over 60 countries worldwide.

With more than two decades of expertise, we offer rapid and customized testing solutions tailored to your specific needs, ensuring excellence and precision in every detail.

Our Advantages:
Leveraging over 20 years of unparalleled experience, Jinan Victory Instrument Co., Ltd. stands at the forefront of delivering rapid and highly accurate testing solutions, customized meticulously to meet your precise requirements.
1. Boasting over twenty years of expertise, Jinan Victory Instrument Co., Ltd. has established a reputation as a premier professional manufacturer in the industry.
2. We offer an exceptional blend of competitive pricing, outstanding quality, and swift delivery, ensuring you receive the best value for your investment.
3. Our all-encompassing, one-stop solutions cater to every aspect of your material testing machine needs, providing unparalleled convenience.
4. As a certified supplier, our credentials include ISO 9001, SGS, CE, among other prestigious qualifications, underscoring our commitment to quality.
5. We provide enduring technical support and service, ensuring the longevity and performance of your product throughout its lifetime.

Sale period service:
Once your purchase order is received, we swiftly activate a meticulously planned production schedule, guaranteeing both efficiency and rapid response.
To cater to your immediate requirements, we maintain a well-stocked inventory of universally standard machines, ready for prompt dispatch.
Every customized machine is crafted with precision within a typical production timeframe of 2-4 weeks, ensuring your exact specifications are met.
Our unwavering commitment to quality control means each machine undergoes thorough inspection, ensuring flawless delivery performance.

After-sales service:
Our comprehensive warranty spans an entire year, providing you with unrivaled peace of mind and assured reliability.
To facilitate effortless operation, we provide comprehensive English-language operation manuals and instructional videos.
We offer professional onsite installation and training services as per your requirements, ensuring a seamless transition and operational integration.
