Metallographic Instrument
Professional Sample Preparation Solutions for ASTM E23 and ISO148 Standards
Available
381Product Description Metallographic Sample Preparation M
| Model NO. | 50mm |
| Type | 0.5 |
| Load Way | Static Load |
| Display | Computer Control |
| Weight | AC380V |
| Oil Cylinder Position | Tensile Test Compression Test, Bending Test etc. |
| Packaging Details | 300kN 500kN 600kN 1000kN 1500kN 2000kN |
| Standard | Metal Materilas, U and V Notch |
| Certificate | Wooden Box |
| Specification | VTS |
| Origin | 9024109000 |
| Production Capacity | 150j 300j 450j 600j 750j |
| Max Load | Pendulum Charpy Impact Testing Machine |
| Testing Machine Mode | OEM |
| Protection Class | 0.5grade |
| Application | <900kg |
| Test Standard | 380V |
| Material | Computer, Digital, Dial |
Metallographic Sample Preparation Machines
1. Application & Features:

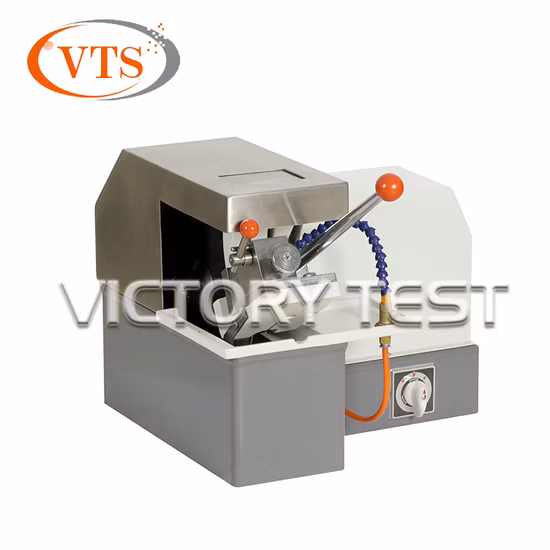

As we are aware, cutting is the crucial initial step in the creation of metallographic specimens. The QG-2 Cutting Machine is expertly crafted for general lithic materials. To ensure sample acquisition in an ultra-safe environment, this machine boasts a fully-enclosed double-enclosure structure and a rapid clamp device. Additionally, it includes a cooling water tank, facilitating the recirculation of prepared cooling liquid.
For enhanced durability and simplified handling and upkeep, critical components such as the encloser, grinding wheel spindle sleeve, jaw, and operating platform are crafted from premium stainless steel. This machine represents the pinnacle of sample cutting equipment.
2. Main Features:
3. Main Technical Specifications: Discover unmatched precision with our Professional Sample Preparation Solutions specifically designed to meet and exceed the rigorous standards of ASTM E23 and ISO148. Engineered by Jinan Victory Instrument Co., Ltd., this product offers exceptional quality and reliability. Whether for research or industrial purposes, our solutions provide precise and consistent sample preparation that ensures your results stand up to global testing standards.
| Operation Mode | Manual / Automatic, free to choose. |
| Feeding Speed | 3mm/min, 5mm/min, 8mm/min (users may modify the set speed according to requirement) |
| Y axis Maximum Travel Distance | 235mm |
| Z axis Maximum Travel Distance | 35mm(cut style) |
| Maximum Cutting Diameter | Φ65mm |
| Cutting Disc Size | Φ300×2×Φ32mm |
| Capacity of the Cooling Water Tank | 60L |
| Rotating Speed | 500-3000r/min |
| Power Supply | Three-phase Five-wire 380V, 50Hz, 2.2kW |
| Dimensions | 800×760×1370mm |
| Weight | 280kg |
| Model | QGZ-90 |
| Operating Mode | Manual / Automatic |
| Appearance | Metal shell, Explosion proof transparent observation window |
| Cutting Disc Size | Φ300×2×Φ32mm |
| Rotating Speed of Spindle | 500-3000r/min |
| Max. Cutting Ability | Max. Φ90mm Round bar |
| Feeding Method | Horizontal feeding: The motor drives the horizontal screw for cutting feed. The feeding speed can be adjusted of 1-40mm/min. |
| Feeding Mode | Automatic mode--Automatic feeding, it will automatically return to the original when arriving the set position. Manual mode--Slewing hand wheel control or keyboard control (motor driven, manual control). |
| Lifting Travel of the Cutting Spindle | 50mm |
| Lifting Method of the Cutting Spindle | Slewing hand wheel control |
| Y axis Travel | 260mm |
| X axis Travel of the Movable Table | 40mm |
| Cutting Platform | Size: 435×300mm, 12mm groove T type working table |
| Cutting Fixture | Rapid push and pull type vise, one set each for left and right operation. Jaw height: 60mm |
| Key Operation | LCD touch screen and poly dome, Emergency stop button |
| Room Lighting | Built-in LED lighting |
| Cooling System | Three cooling water and one cleaning water |
| Magnetic Filtering Circulating Water Tank | 80L |
| Motor | 3kw Frequency conversion motor |
| Power Supply | 380V, 50Hz |
| Dimensions | 910×935×1350mm |
| Weight | 430kg |
4. Captivating Imagery of Our Metallographic Sample Preparation Machines in Our State-of-the-Art Factory
- Notch Cutting Machine: Precision and Reliability at Its Finest Charpy Projector & Cooling Solutions: Ultimate Performance Assured Chamber (-60°C, -100°C) to -196°C with Advanced Liquid Nitrogen Cooling
Jinan Victory Instrument Co., Ltd (Victory Test - VTS) stands as a beacon of excellence in the world of material testing machines and quality control testing equipment. Nestled in Jinan city, the vibrant heart of Shandong province, China, VTS offers unparalleled expertise and innovation. Our strategic location in the northeast of China ensures swift connections, just a mere 2-hour journey from the bustling metropolises of Beijing and Shanghai. With an unwavering dedication to excellence, we provide comprehensive solutions to ensure the highest standards in Quality Control for metal materials. Boasting a dynamic team of over 50 skilled professionals and amassing over 20 years of invaluable experience, we deliver bespoke testing solutions with remarkable efficiency and precision.
VTS, proudly holding ISO9001 CE certification, is a trailblazing high-tech enterprise passionately devoted to the design, research, production, and marketing of advanced metal materials mechanical property testing machines. Our extensive range includes machines adept at tensile, compression, bend, torsion, impact, hardness, fatigue testing, and more. VTS products not only adhere to global standards such as ISO, ASTM, BS EN, TAPPI, and GB but have also achieved the prestigious CE certification. Our reputation for quality has crossed borders, with satisfied clients in over 60 countries worldwide.
Leveraging over two decades of rich experience, we are poised to deliver the perfect testing solution tailored swiftly and precisely to your specific requirements, ensuring your needs are met with the utmost proficiency and satisfaction.
Our Unmatched Advantages:
With over 20 years of rich experience, we swiftly provide the perfect testing solution tailored to your specific requirements.
1. Renowned Professional Manufacturer with Over Two Decades of Expertise
2. Competitive Pricing Coupled with Superior Quality and Optimal Delivery Times
3. Comprehensive One-Stop Solutions for Material Testing Equipment
4. Supplier Certified by ISO 9001, SGS, CE, and More
5. Enduring Lifetime Technical Support and Dedicated Service
Sales Period Service Commitment:
Upon receiving your Purchase Order, we expedite the production arrangement immediately.
Standard machines are readily available in our inventory.
For machines customized to your needs, expect a production timeline of approximately 2-4 weeks.
We enforce stringent quality controls, ensuring each machine undergoes meticulous inspection before dispatch.
Post-Sale Service Assurance:
Our warranty typically extends for a one-year period, ensuring peace of mind.
We provide detailed English operation manuals and comprehensive instructional videos.
If necessary, we offer on-site installation and training services to ensure seamless operation.
